Sullins Connector Solutions
| Part Number | NPPN302GHNP-RC | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|

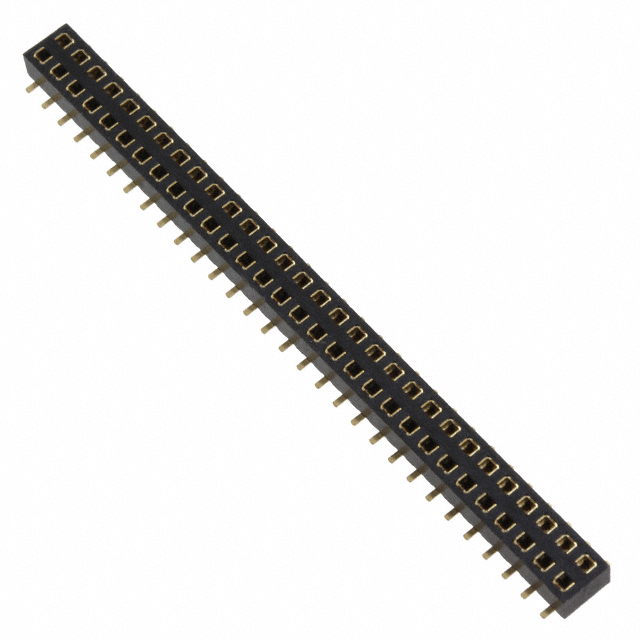

| Description | CONN RECEPT 2MM DUAL SMD 60POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3267 pcs | Data sheet | NPPN302GHNP-RC.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | - |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Other Names | S6012-30 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 60 |
| Mounting Type | Surface Mount | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA6T), Nylon 6T | Insulation Height | 0.110" (2.79mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Push-Pull |
| Detailed Description | 60 Position Header, Bottom Entry Connector 0.079" (2.00mm) Surface Mount Gold | Current Rating | 1A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header, Bottom Entry | Applications | - |
