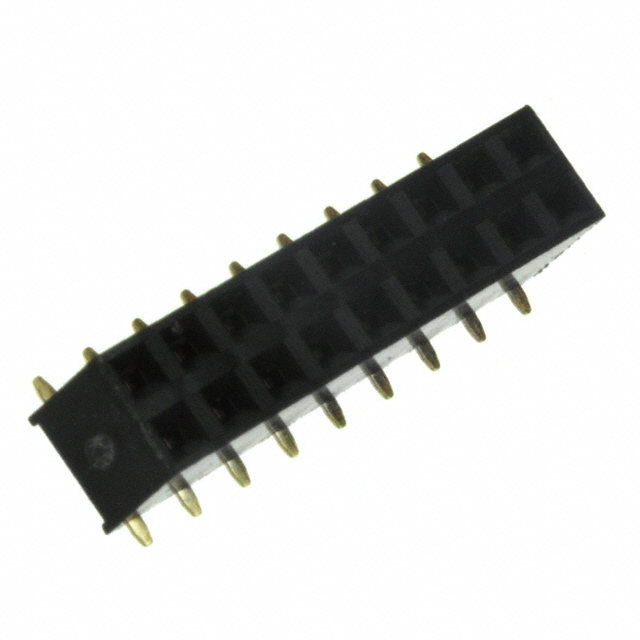

Sullins Connector Solutions
| Part Number | NPPN092FFKP-RC | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN RECEPT 2MM DUAL SMD 18POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 87695 pcs | Data sheet | NPPN092FFKP-RC.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | - |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Other Names | S6011-09 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 18 |
| Mounting Type | Surface Mount | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA6T), Nylon 6T |
| Insulation Height | 0.173" (4.40mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Push-Pull | Detailed Description | 18 Position Header Connector 0.079" (2.00mm) Surface Mount Gold |
| Current Rating | 2A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
