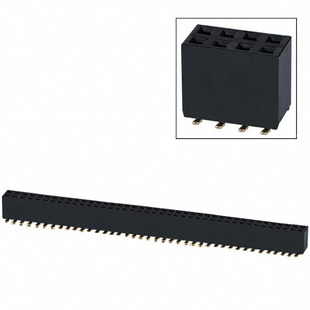

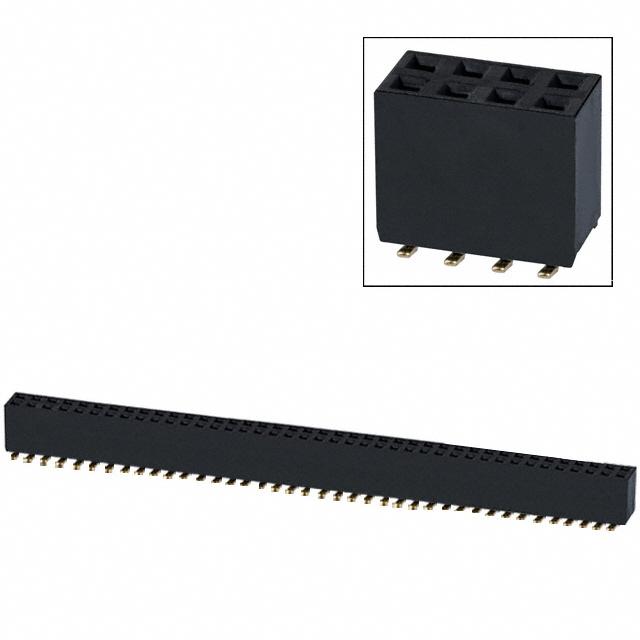

Sullins Connector Solutions
| Part Number | NPPC402KFMS-RC | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN FMALE 80POS DL .1" GOLD SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22846 pcs | Data sheet | 1.NPPC402KFMS-RC.pdf2.NPPC402KFMS-RC.pdf |
| Voltage Rating | 250V | Termination | Solder |
| Style | Board to Board | Series | - |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Other Names | S5749 |
| Operating Temperature | -40°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 80 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA6T), Nylon 6T | Insulation Height | 0.299" (7.60mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 80 Position Header Connector 0.100" (2.54mm) Surface Mount Gold | Current Rating | 3A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
