Sullins Connector Solutions
| Part Number | LPPB111NFSC-RC | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|

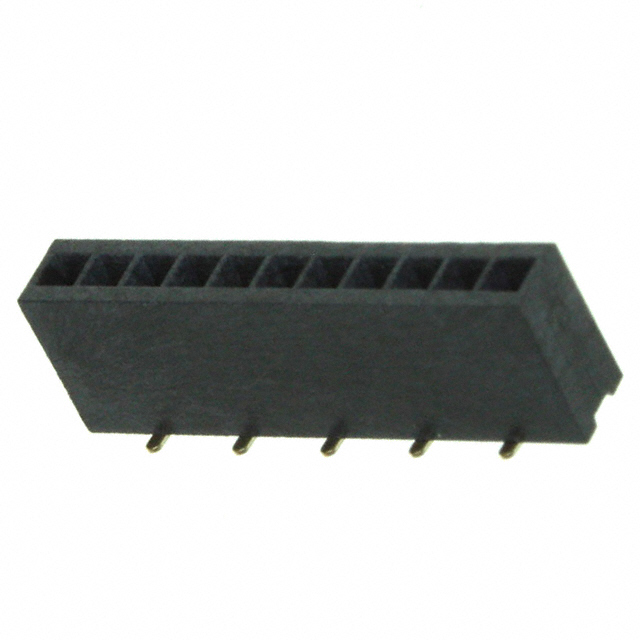

| Description | CONN HEADER .050" 11POS SMD GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 107097 pcs | Data sheet | 1.LPPB111NFSC-RC.pdf2.LPPB111NFSC-RC.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | - |
| Row Spacing - Mating | - | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Bulk | Other Names | S9005E-11 |
| Operating Temperature | -40°C ~ 125°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 11 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.183" (4.65mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 11 Position Header, Top or Bottom Entry Connector 0.050" (1.27mm) Surface Mount Gold | Current Rating | 1A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header, Top or Bottom Entry | Applications | - |
