GBC36SAAN

Sullins Connector Solutions

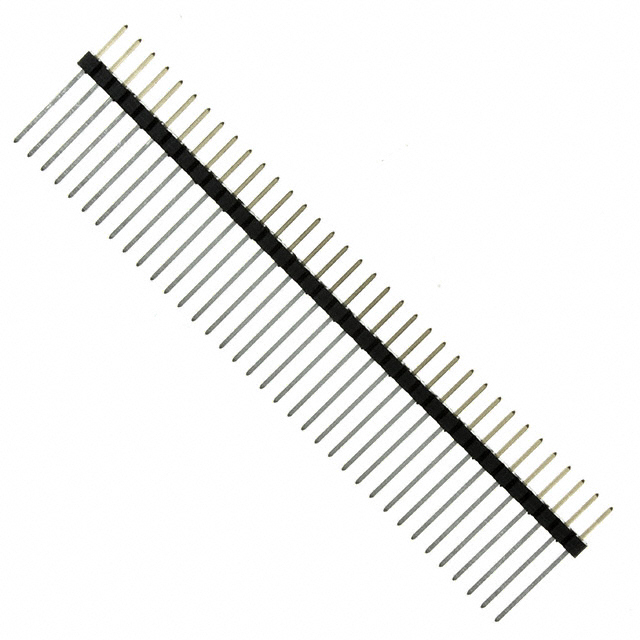

Image may be representation. See specifications for product details.

Product Overview

Part Number:	GBC36SAAN
Manufacturer/Brand:	Sullins Connector Solutions
Product description	CONN HDR VERT 36POS .100" GOLD
Datasheets:	1.GBC36SAAN.pdf 2.GBC36SAAN.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	49640 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 49640 pcs

Reference Price (In US Dollars)

1 pcs: $0.733

10 pcs: $0.665

25 pcs: $0.625

50 pcs: $0.598

100 pcs: $0.57

250 pcs: $0.516

500 pcs: $0.475

1000 pcs: $0.441

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.733

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of GBC36SAAN

Part Number	GBC36SAAN	Manufacturer	Sullins Connector Solutions
Description	CONN HDR VERT 36POS .100" GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	49640 pcs	Data sheet	1.GBC36SAAN.pdf 2.GBC36SAAN.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	-	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	0.450" (11.43mm)	Other Names	GBC36SAAN-ND S9681
Operating Temperature	-65°C ~ 150°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	36
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	3 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA9T), Nylon 9T	Insulation Height	0.100" (2.54mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 36 position 0.100" (2.54mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.120" (3.05mm)
Contact Length - Mating	0.230" (5.84mm)	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	10.0µin (0.25µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header, Breakaway
Applications	-
