2CM77P1001-1-H

Sullins Connector Solutions

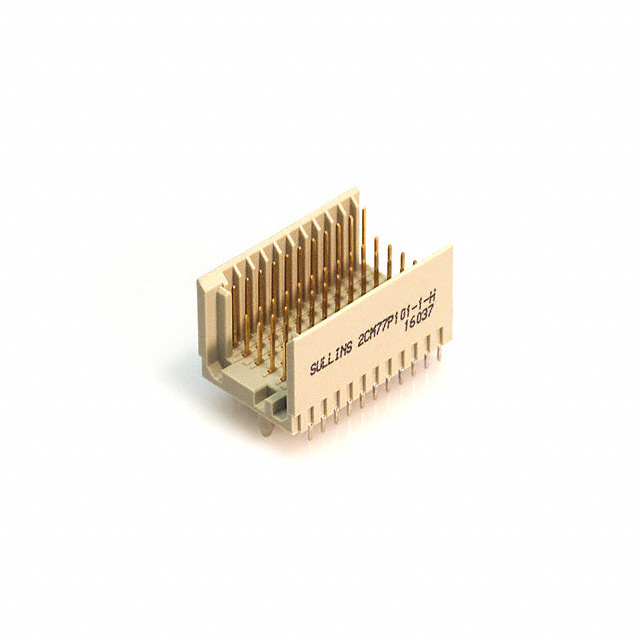

Image may be representation. See specifications for product details.

Product Overview

Part Number:	2CM77P1001-1-H
Manufacturer/Brand:	Sullins Connector Solutions
Product description	CONN HEADER HM C SHIELDED 77POS
Datasheets:	2CM77P1001-1-H.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	4807 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4807 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 2CM77P1001-1-H

Part Number	2CM77P1001-1-H	Manufacturer	Sullins Connector Solutions
Description	CONN HEADER HM C SHIELDED 77POS	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	4807 pcs	Data sheet	2CM77P1001-1-H.pdf
Voltage Rating	-	Termination	Press-Fit
Series	-	Pitch	0.079" (2.00mm)
Packaging	Tube	Other Names	2CM77P10011H S3117
Operating Temperature	-65°C ~ 125°C	Number of Rows	5 + 2
Number of Positions Loaded	All	Number of Positions	77 (55 + 22 Ground)
Mounting Type	Through Hole	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Features	-	Detailed Description	77 (55 + 22 Ground) Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole
Current Rating	1A	Contact Finish Thickness	30.0µin (0.76µm)
Contact Finish	Gold	Connector Usage	CompactPCI
Connector Type	Header, Male Pins	Connector Style	C 11
