Storm Interface
| Part Number | 70120103 | Manufacturer | Storm Interface |
|---|---|---|---|

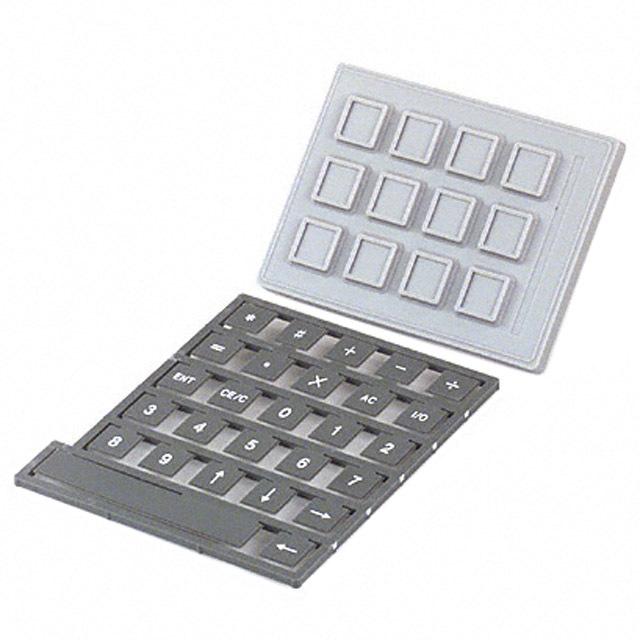

| Description | SWITCH KEYPAD 12 KEY 0.05A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2430 pcs | Data sheet | 1.70120103.pdf2.70120103.pdf |
| Termination Style | Pin Header | Switch Type | Conductive Rubber |
| Series | 700 | Panel Cutout Dimensions | - |
| Output Type | Matrix | Other Names | 70120101 70120102 MGR1102 |
| Operational Life | 2,000,000 Cycles | Operating Temperature | -55°C ~ 125°C |
| Number of Keys | 12 | Mounting Type | Panel Mount, Front or Rear |
| Matrix (Columns x Rows) | 3 x 4 | Manufacturer Standard Lead Time | 4 Weeks |
| Legend Type | Interchangeable | Legend Color | White |
| Legend | Customizable (Included) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Key Type | Rubber Overlay | Key Color | Gray |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Illumination Voltage (Nominal) | - |
| Illumination | Non-Illuminated | Features | Gray Housing |
| Detailed Description | Keypad Switch 12 Rubber Overlay Keys Conductive Rubber Contacts Matrix Output Non-Illuminated 0.05A @ 24VDC | Contact Rating @ Voltage | 0.05A @ 24VDC |
| Approvals | CE |
