Standex-Meder Electronics

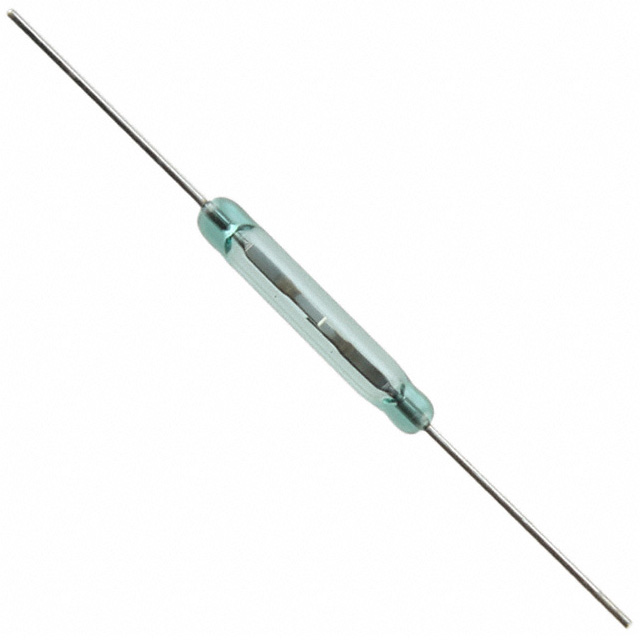

| Part Number | ORD325-1520 | Manufacturer | Standex-Meder Electronics |
|---|---|---|---|
| Description | SWITCH REED SPST-NO 500MA 150V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6253 pcs | Data sheet | |
| Voltage - Switching DC | 200V | Voltage - Switching AC | 150V |
| Type | Glass Body | Termination Style | Axial |
| Size - Body | 0.110" Dia x 0.669" L (2.80mm x 17.00mm) | Series | ORD |
| Release Time | 0.05ms | Release Range | - |
| Power - Rated | 10VA | Packaging | Bulk |
| Other Names | 374-1202 4507141520 ORD3251520 |
Operating Temperature | - |
| Operate Time | 0.4ms | Operate Range | 15 ~ 20AT |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Length - Overall | 1.736" (44.10mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | - | Detailed Description | Glass Body Reed Switch SPST-NO 15 ~ 20AT Operate Range 10VA 500mA (AC/DC) 150V Through Hole |
| Current - Switching | 500mA (AC/DC) | Current - Carry | 1A (AC/DC) |
| Circuit | SPST-NO | Capacitance | 0.3pF |
