Standex-Meder Electronics

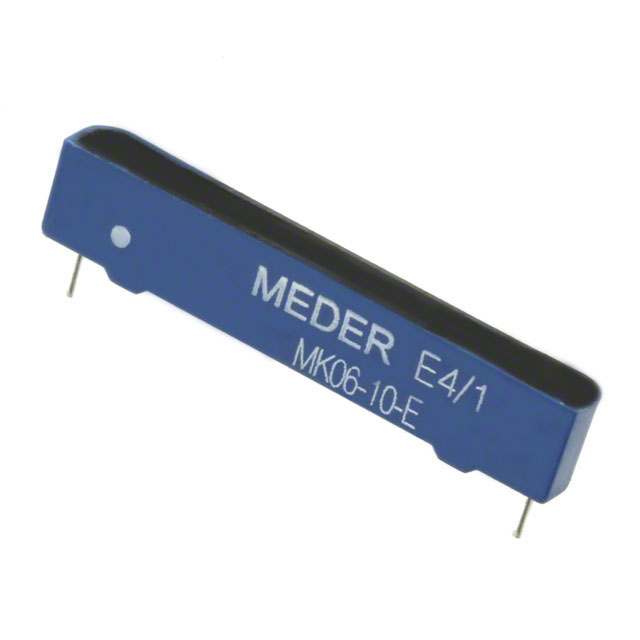

| Part Number | MK06-10-E | Manufacturer | Standex-Meder Electronics |
|---|---|---|---|
| Description | SWITCH REED LATCHING 500MA 200V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16247 pcs | Data sheet | 1.MK06-10-E.pdf2.MK06-10-E.pdf |
| Voltage - Switching DC | 200V | Voltage - Switching AC | 200V |
| Type | Molded Body | Termination Style | PC Pin |
| Size - Body | 1.125" L x 0.150" W x 0.225" H (28.58mm x 3.81mm x 5.72mm) | Series | MK06 |
| Release Time | 0.05ms | Release Range | - |
| Power - Rated | 10W | Packaging | Bulk |
| Other Names | 2261071700 374-1062 MK06-10-E-ND MK0610E MK6-10-E MK6-10-E-ND MK610E |
Operating Temperature | -20°C ~ 85°C |
| Operate Time | 0.7ms | Operate Range | 4 ~ 12mm |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 12 Weeks | Length - Overall | 1.125" (28.58mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Above Board | 0.225" (5.72mm) |
| Detailed Description | Molded Body Reed Switch SPST-NO, Latching 4 ~ 12mm Operate Range 10W 500mA (AC/DC) 200V Through Hole | Current - Switching | 500mA (AC/DC) |
| Current - Carry | 1A (AC/DC) | Circuit | SPST-NO, Latching |
| Capacitance | 0.3pF |
