Standex-Meder Electronics

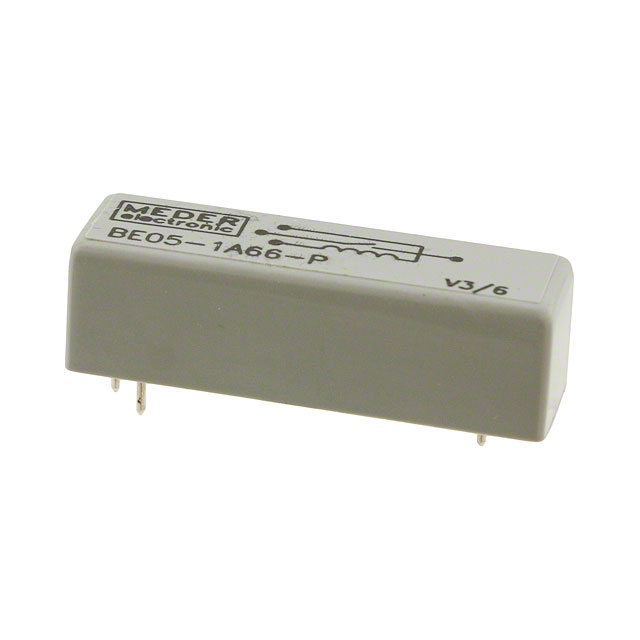

| Part Number | BE05-1A66-P | Manufacturer | Standex-Meder Electronics |
|---|---|---|---|
| Description | RELAY REED SPST 0.5A 5V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9694 pcs | Data sheet | BE05-1A66-P.pdf |
| Turn On Voltage (Max) | 3.5 VDC | Turn Off Voltage (Min) | 0.75 VDC |
| Termination Style | PC Pin | Switching Voltage | 200VAC, 200VDC - Max |
| Series | BE | Release Time | 0.1ms |
| Packaging | Tube | Other Names | 374-1321 8805171100 BE051A66P |
| Operating Temperature | -20°C ~ 70°C | Operate Time | 0.5ms |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Sealed - Fully | Contact Rating (Current) | 500mA |
| Contact Material | - | Contact Form | SPST-NO (1 Form A) |
| Coil Voltage | 5VDC | Coil Type | Non Latching |
| Coil Resistance | 140 Ohms | Coil Power | 179 mW |
| Coil Current | 35.8mA |
