SGNMNC3505E

Sprague GoodmanSprague Goodman

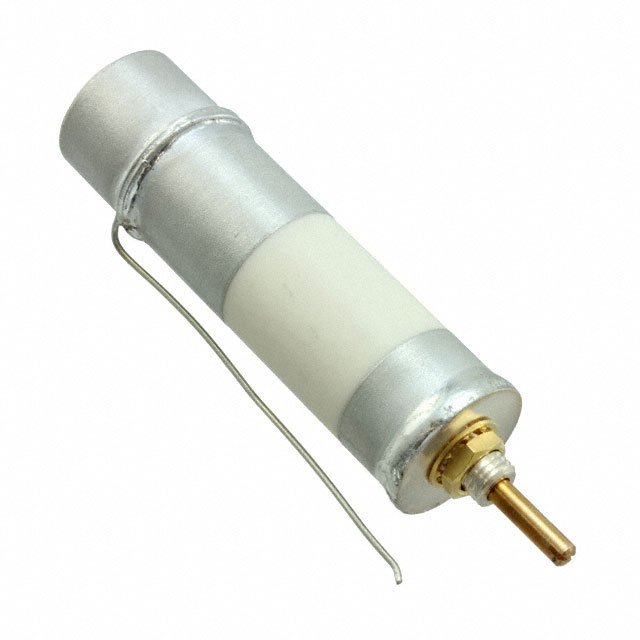

SGNMNC3505E Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: SGNMNC3505E
Manufacturer/Brand: Sprague Goodman
Product description CAP TRIM 5-50PF 4500V CHAS MNT
Datasheets: SGNMNC3505E.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 388 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 388 pcs
Reference Price (In US Dollars)
50 pcs
$99.341
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$99.341

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of SGNMNC3505E

Part Number SGNMNC3505E Manufacturer Sprague Goodman
Description CAP TRIM 5-50PF 4500V CHAS MNT Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 388 pcs Data sheet SGNMNC3505E.pdf
Voltage - Rated 4500V Size / Dimension 0.710" Dia (18.03mm)
Series SGNM-Series 3 Q @ Freq 700 @ 25MHz
Packaging Bulk Operating Temperature -55°C ~ 125°C
Mounting Type Chassis Mount Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Height - Seated (Max) -
Features Non-Magnetic, Sealed Dielectric Material Ceramic
Detailed Description 5 ~ 50pF Trimmer Capacitor 4500V Chassis Mount Capacitance Range 5 ~ 50pF
Adjustment Type -
