Souriau Connection Technology
| Part Number | UTL0103G1S20AWG | Manufacturer | Souriau Connection Technology |
|---|---|---|---|
| Description | CONN CIRC RCPT 4POS CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4891 pcs | Data sheet | 1.UTL0103G1S20AWG.pdf2.UTL0103G1S20AWG.pdf |
| Voltage Rating | - | Termination | Crimp |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 10-3 | Shell Material | Polyamide (PA), Nylon, Glass Filled |
| Shell Finish | - | Series | UTL |
| Packaging | Bulk | Other Names | SOU1845 |
| Orientation | - | Operating Temperature | -40°C ~ 105°C |
| Number of Positions | 4 (3 + PE) | Mounting Type | Panel Mount |
| Mounting Feature | Flange | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 5VA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Thermoplastic | Ingress Protection | IP67/68/69K - Dust Tight, Water Resistant, Waterproof |
| Features | UV Resistant | Fastening Type | Latch Lock |

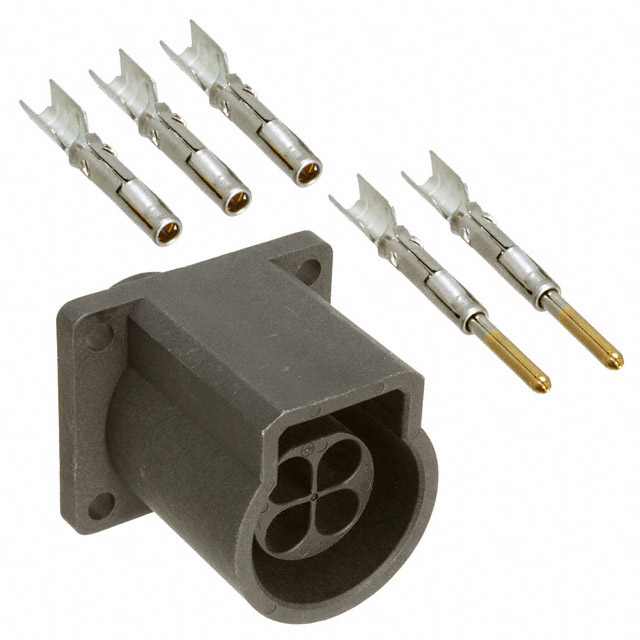

| Detailed Description | 4 (3 + PE) Position Circular Connector Receptacle, Female Sockets and Male Pins Crimp Gold | Current Rating | - |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Female Sockets and Male Pins |
| Color | Black | Cable Opening | 0.709" (18.00mm) |
| Backshell Material, Plating | - | Applications | Industrial |
