Souriau Connection Technology

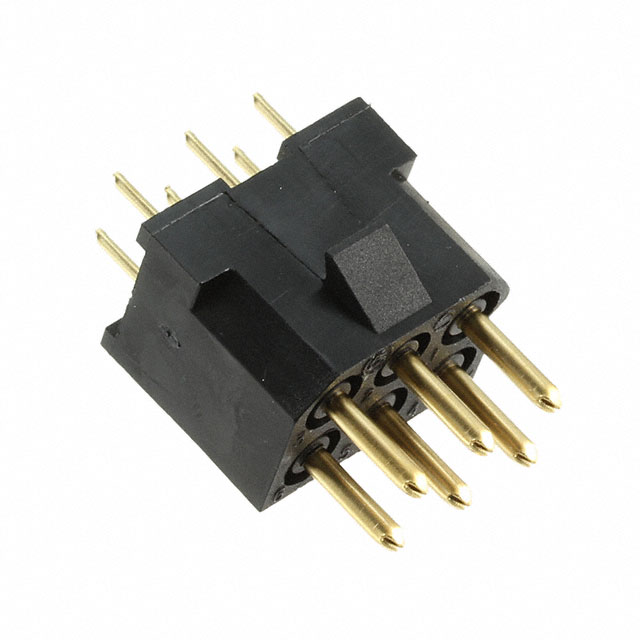

| Part Number | SMS6R4S6 | Manufacturer | Souriau Connection Technology |
|---|---|---|---|
| Description | SMS BOARDMOUNT PIN ASSEMBLY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7917 pcs | Data sheet | |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Unshrouded |
| Series | SMS | Row Spacing - Mating | 0.200" (5.08mm) |
| Pitch - Mating | 0.200" (5.08mm) | Packaging | Bulk |
| Overall Contact Length | 0.972" (24.70mm) | Other Names | SMS6R4S6-ND SOU2191 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 6 |
| Mounting Type | Through Hole | Material Flammability Rating | UL94 V-2 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.520" (13.20mm) | Insulation Color | Black |
| Ingress Protection | IP40 | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 6 position 0.200" (5.08mm) |
| Current Rating | 5A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.173" (4.40mm) | Contact Length - Mating | 0.280" (7.11mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 16.0µin (0.41µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
