Souriau Connection Technology

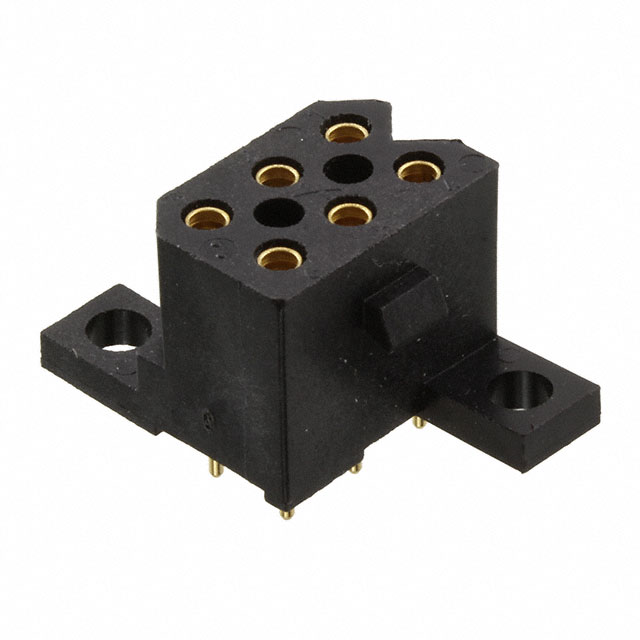

| Part Number | SMS6GE3 | Manufacturer | Souriau Connection Technology |
|---|---|---|---|
| Description | SMS STRGHT BRDMNT FML CONS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10214 pcs | Data sheet | |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Series | SMS |
| Row Spacing - Mating | 0.200" (5.08mm) | Pitch - Mating | 0.200" (5.08mm) |
| Packaging | Bulk | Other Names | SMS6GE3-ND SOU2002 |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 6 |
| Mounting Type | Through Hole | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic, Glass Filled |
| Insulation Height | 0.528" (13.40mm) | Insulation Color | Black |
| Ingress Protection | IP40 | Features | Mounting Flange |
| Fastening Type | Locking Ramp | Detailed Description | 6 Position Receptacle Connector 0.200" (5.08mm) Through Hole Gold |
| Current Rating | 7.5A | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.134" (3.40mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 16.0µin (0.41µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
