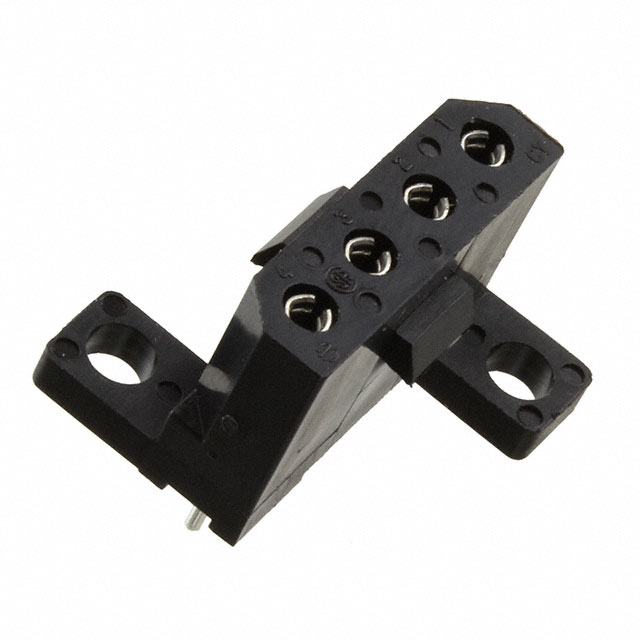

Souriau Connection Technology
| Part Number | SMS4RE3TR29 | Manufacturer | Souriau Connection Technology |
|---|---|---|---|
| Description | SMS STRGHT BRDMNT FML CONS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15958 pcs | Data sheet | |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Series | SMS |
| Row Spacing - Mating | - | Pitch - Mating | 0.200" (5.08mm) |
| Packaging | Bulk | Other Names | SMS4RE-3TR29 SMS4RE3TR29-ND SOU2001 |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Through Hole | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic, Glass Filled |
| Insulation Height | 0.528" (13.40mm) | Insulation Color | Black |
| Ingress Protection | IP40 | Features | Mounting Flange |
| Fastening Type | Locking Ramp | Detailed Description | 4 Position Receptacle Connector 0.200" (5.08mm) Through Hole Tin |
| Current Rating | 5A | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.173" (4.40mm) | Contact Finish Thickness - Post | 118.1µin (3.00µm) |
| Contact Finish Thickness - Mating | 118.1µin (3.00µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle |
| Applications | - |
