Souriau Connection Technology

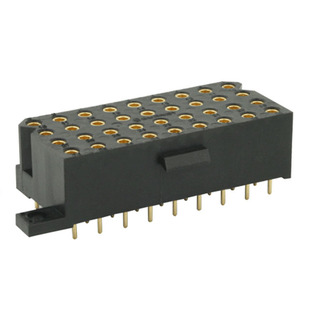

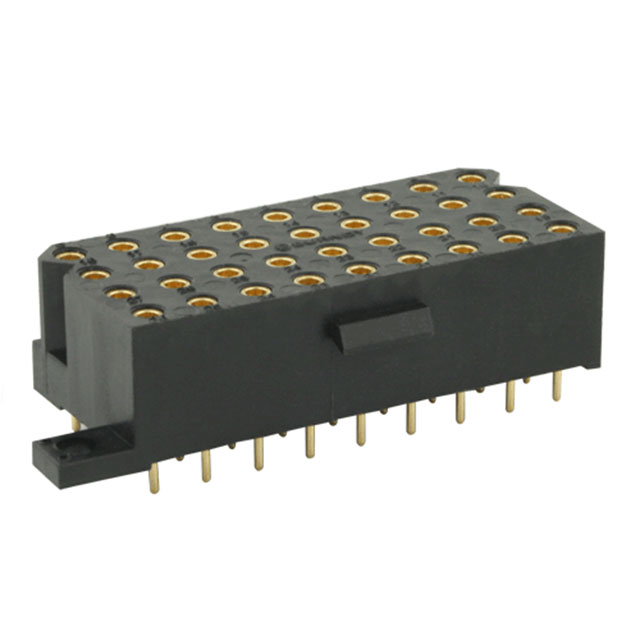

| Part Number | SMS36RE3S6 | Manufacturer | Souriau Connection Technology |
|---|---|---|---|
| Description | BOARDMOUNT QIKMATE SOCKE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6846 pcs | Data sheet | |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Series | SMS |
| Row Spacing - Mating | 0.200" (5.08mm) | Pitch - Mating | 0.200" (5.08mm) |
| Packaging | Bulk | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 4 | Number of Positions Loaded | All |
| Number of Positions | 36 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic, Glass Filled |
| Insulation Height | 0.528" (13.40mm) | Insulation Color | Black |
| Ingress Protection | IP40 | Features | Mounting Flange |
| Fastening Type | Locking Ramp | Detailed Description | 36 Position Receptacle Connector Through Hole Gold |
| Current Rating | 5A | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.173" (4.40mm) | Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | 29.5µin (0.75µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
