Souriau Connection Technology

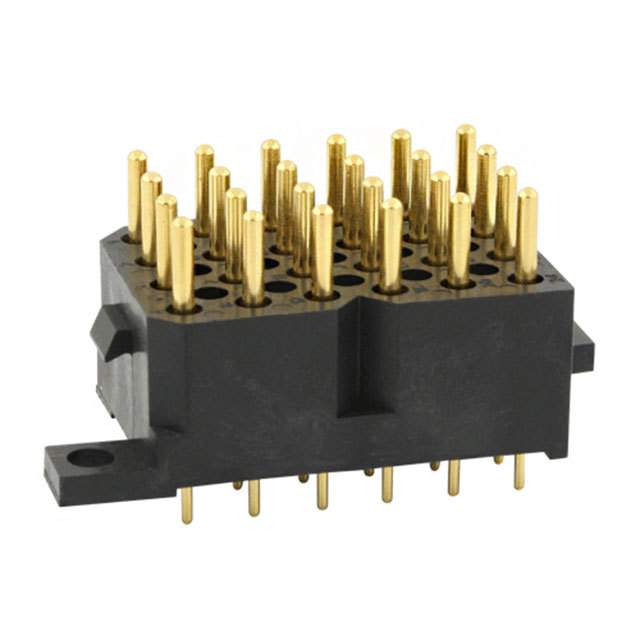

| Part Number | SMS24RE4S6 | Manufacturer | Souriau Connection Technology |
|---|---|---|---|
| Description | SMS STRGHT BRDMNT MLE CONS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8533 pcs | Data sheet | 1.SMS24RE4S6.pdf2.SMS24RE4S6.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Unshrouded |
| Series | SMS | Row Spacing - Mating | 0.200" (5.08mm) |
| Pitch - Mating | 0.200" (5.08mm) | Packaging | Bulk |
| Overall Contact Length | 0.972" (24.70mm) | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 6 | Number of Positions Loaded | All |
| Number of Positions | 24 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyester, Glass Filled | Insulation Height | 0.520" (13.20mm) |
| Insulation Color | Black | Ingress Protection | IP40 |
| Features | Mounting Flange | Fastening Type | Locking Ramp |
| Detailed Description | Connector Header Through Hole 24 position 0.200" (5.08mm) | Current Rating | 5A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Copper Alloy | Contact Length - Post | 0.173" (4.40mm) |
| Contact Length - Mating | 0.280" (7.11mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 16.0µin (0.41µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
