Souriau Connection Technology

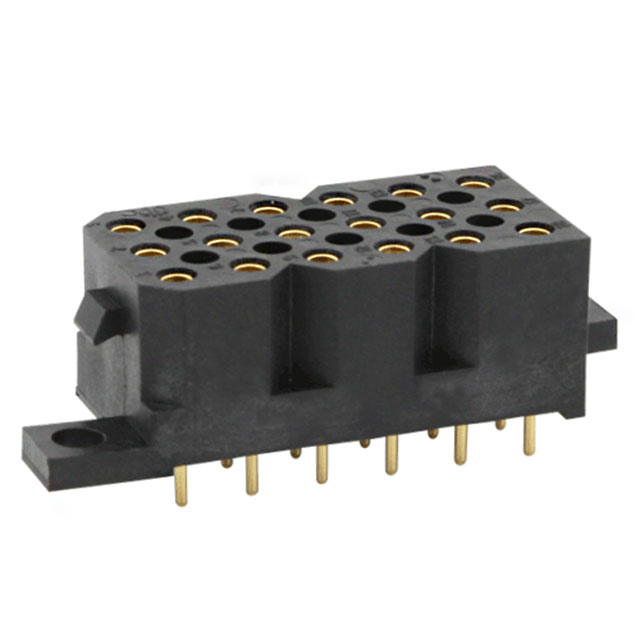

| Part Number | SMS18RE3S6 | Manufacturer | Souriau Connection Technology |
|---|---|---|---|
| Description | SMS VERTICAL BOARD MT. | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7247 pcs | Data sheet | |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Series | SMS |
| Row Spacing - Mating | 0.200" (5.08mm) | Pitch - Mating | 0.200" (5.08mm) |
| Packaging | Bulk | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 6 | Number of Positions Loaded | All |
| Number of Positions | 18 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic, Glass Filled | Insulation Height | 0.528" (13.40mm) |
| Insulation Color | Black | Ingress Protection | IP40 |
| Features | Mounting Flange | Fastening Type | Locking Ramp |
| Detailed Description | 18 Position Receptacle Connector 0.200" (5.08mm) Through Hole Gold | Current Rating | 5A |
| Contact Type | Female Socket | Contact Shape | Circular |
| Contact Material | Copper Alloy | Contact Length - Post | 0.173" (4.40mm) |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
