Souriau Connection Technology

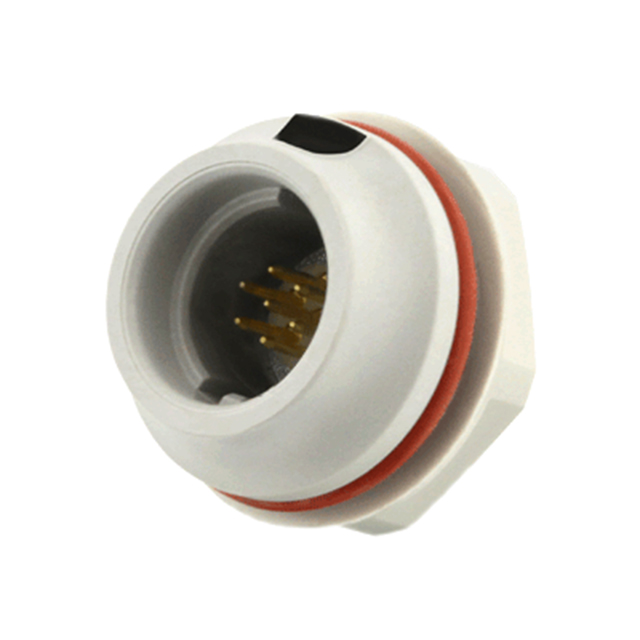

| Part Number | JMXHH1G07MSUDSU | Manufacturer | Souriau Connection Technology |
|---|---|---|---|
| Description | CONN RCPT MALE 7POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5106 pcs | Data sheet | JMXHH1G07MSUDSU.pdf |
| Voltage Rating | 160V | Termination | Solder Cup |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 1-7 | Shell Material | Polyetherimide (PEI) |
| Shell Finish | - | Series | JMX |
| Packaging | Bulk | Orientation | G |
| Operating Temperature | -20°C ~ 100°C | Number of Positions | 7 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Rear Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 23 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyetheretherketone (PEEK) | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 7 Position Circular Connector Receptacle, Male Pins Solder Cup Gold | Current Rating | 5A |
| Contact Material | Copper Nickel | Contact Finish Thickness - Mating | 19.7µin (0.50µm) |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Male Pins |
| Color | Light Gray | Cable Opening | - |
| Backshell Material, Plating | - | Applications | Industrial, Instrumentation, Medical |
