Souriau Connection Technology
| Part Number | JMXFH1G10FSUDSP | Manufacturer | Souriau Connection Technology |
|---|---|---|---|
| Description | CONN PLUG FMALE 10POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3069 pcs | Data sheet | JMXFH1G10FSUDSP.pdf |
| Voltage Rating | 100V | Termination | Solder Cup |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 1-10 | Shell Material | Polyetherimide (PEI) |
| Shell Finish | - | Series | JMX |
| Packaging | Bulk | Orientation | G |
| Operating Temperature | -40°C ~ 125°C | Number of Positions | 10 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyetheretherketone (PEEK) | Ingress Protection | IP50/68 - Dust Protected, Dust Tight, Waterproof |
| Features | Backshell | Fastening Type | Push-Pull |

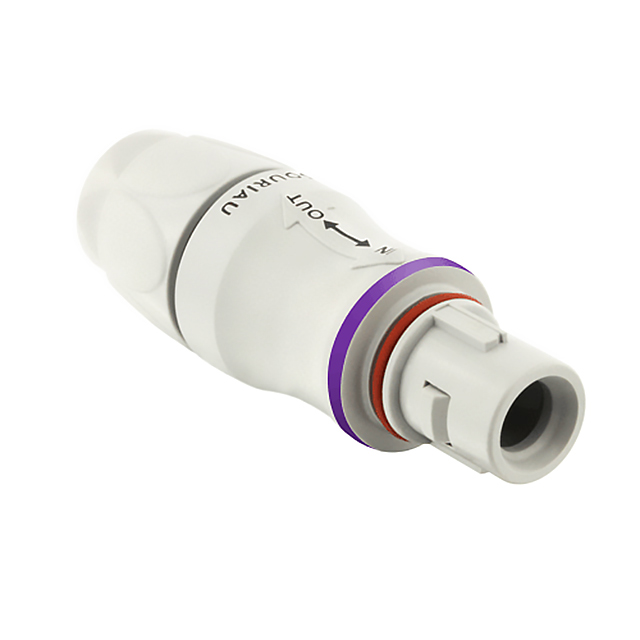

| Detailed Description | 10 Position Circular Connector Plug, Female Sockets Solder Cup Gold | Current Rating | 2.5A |
| Contact Material | Copper Nickel | Contact Finish Thickness - Mating | 19.7µin (0.50µm) |
| Contact Finish - Mating | Gold | Connector Type | Plug, Female Sockets |
| Color | Light Gray, Purple | Cable Opening | - |
| Backshell Material, Plating | Polyetherimide (PEI) | Applications | Industrial, Instrumentation, Medical |
