Souriau Connection Technology
| Part Number | JBXFC1G07MSSDSR | Manufacturer | Souriau Connection Technology |
|---|---|---|---|

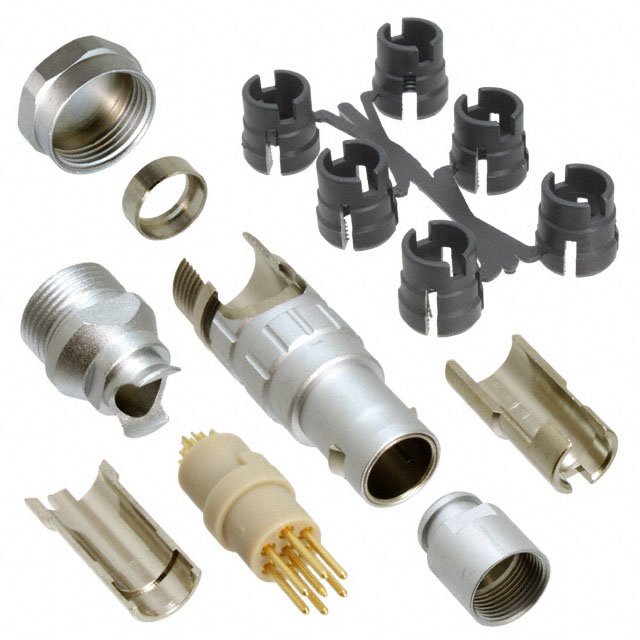

| Description | CONN PLUG MALE 7POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1690 pcs | Data sheet | JBXFC1G07MSSDSR.pdf |
| Voltage Rating | 660V | Termination | Solder Cup |
| Shielding | Shielded | Shell Size, MIL | - |
| Shell Size - Insert | 1 | Shell Material | Brass |
| Shell Finish | Chrome over Nickel | Series | JBX |
| Packaging | Bulk | Other Names | SOU1806 |
| Orientation | G | Operating Temperature | -40°C ~ 125°C |
| Number of Positions | 7 | Mounting Type | Free Hanging (In-Line), Right Angle |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyetheretherketone (PEEK) | Ingress Protection | IP40 |
| Features | Backshell | Fastening Type | Push-Pull |
| Detailed Description | 7 Position Circular Connector Plug, Male Pins Solder Cup Gold | Current Rating | 7A |
| Contact Material | - | Contact Finish Thickness - Mating | 19.7µin (0.50µm) |
| Contact Finish - Mating | Gold | Connector Type | Plug, Male Pins |
| Color | Silver | Cable Opening | - |
| Backshell Material, Plating | Brass, Chrome over Nickel | Applications | Industrial, Instrumentation, Medical, Telecommunications |
