Souriau Connection Technology

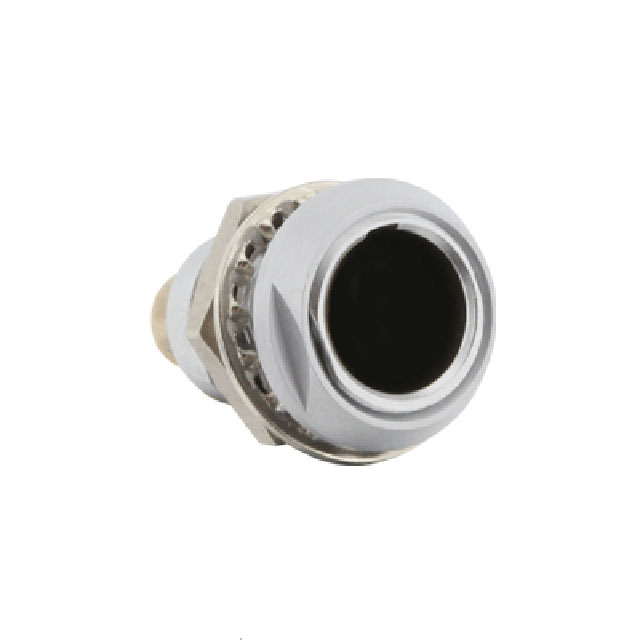

| Part Number | JBXEA1G07FCSDS | Manufacturer | Souriau Connection Technology |
|---|---|---|---|
| Description | CONN RCPT FMALE 7POS GOLD CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2950 pcs | Data sheet | JBXEA1G07FCSDS.pdf |
| Voltage Rating | 660V | Termination | Crimp |
| Shielding | Shielded | Shell Size, MIL | - |
| Shell Size - Insert | 1 | Shell Material | Brass |
| Shell Finish | Chrome over Nickel | Series | JBX |
| Packaging | Bulk | Orientation | G |
| Operating Temperature | -40°C ~ 125°C | Number of Positions | 7 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front or Rear Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 17 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyetheretherketone (PEEK) | Ingress Protection | IP40 |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 7 Position Circular Connector Receptacle, Female Sockets Crimp Gold | Current Rating | 7A |
| Contact Material | - | Contact Finish Thickness - Mating | 19.7µin (0.50µm) |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Female Sockets |
| Color | Silver | Cable Opening | - |
| Backshell Material, Plating | - | Applications | Industrial, Instrumentation, Medical, Telecommunications |
