Souriau Connection Technology

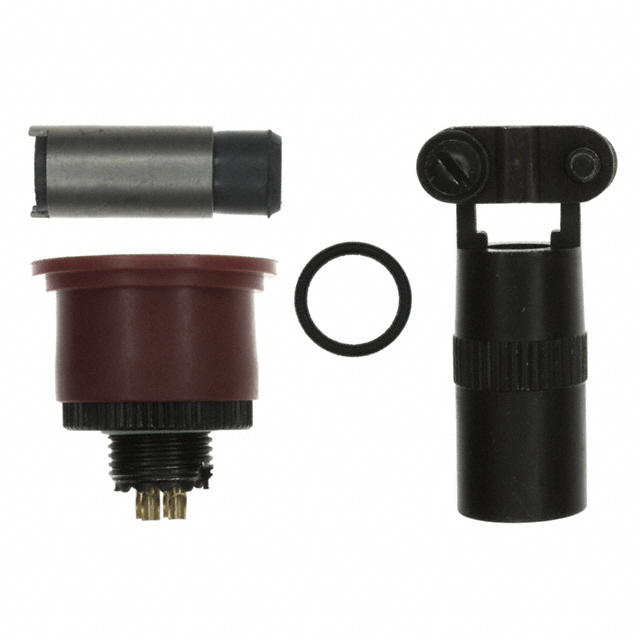

| Part Number | 85106JC84S50 | Manufacturer | Souriau Connection Technology |
|---|---|---|---|
| Description | CONN PLUG FMALE 4POS GOLD SOLDER | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 6035 pcs | Data sheet | 85106JC84S50.pdf |
| Voltage Rating | - | Termination | Solder Cup |
| Shielding | Shielded | Shell Size, MIL | - |
| Shell Size - Insert | 8-4 | Shell Material | Aluminum Alloy |
| Shell Finish | Olive Green Cadmium | Series | MIL-DTL-26482, 851 |
| Packaging | Bulk | Other Names | 851-06JC8-4S50 SOU1496 |
| Orientation | N (Normal) | Operating Temperature | -55°C ~ 125°C |
| Number of Positions | 4 | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Material Flammability Rating | UL94 HB |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insert Material | Neoprene |
| Ingress Protection | IP67/68 - Dust Tight, Waterproof | Features | Backshell, Cable Clamp, Coupling Nut |
| Fastening Type | Bayonet Lock | Detailed Description | 4 Position Circular Connector Plug, Female Sockets Solder Cup Gold |
| Current Rating | 7.5A | Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | - | Contact Finish - Mating | Gold |
| Connector Type | Plug, Female Sockets | Color | Olive Green |
| Cable Opening | 0.198" ~ 0.230" (5.02mm ~ 5.84mm) | Backshell Material, Plating | Aluminum Alloy, Olive Drab Cadmium |
| Applications | Aviation, Industrial, Military |
