AAT1409IMK-T1

Skyworks Solutions, Inc.

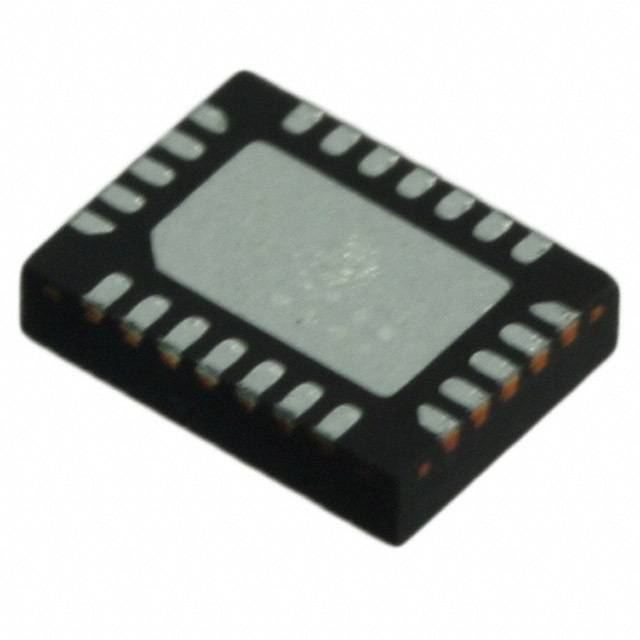

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AAT1409IMK-T1
Manufacturer/Brand:	Skyworks Solutions, Inc.
Product description	IC LED BACKLT DVR 8CH 24TQFN
Datasheets:	AAT1409IMK-T1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4281 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4281 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AAT1409IMK-T1

Part Number	AAT1409IMK-T1	Manufacturer	Skyworks Solutions, Inc.
Description	IC LED BACKLT DVR 8CH 24TQFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4281 pcs	Data sheet	AAT1409IMK-T1.pdf
Voltage - Supply (Min)	4.5V	Voltage - Supply (Max)	26V
Voltage - Output	45V	Type	DC DC Regulator
Topology	Step-Up (Boost)	Supplier Device Package	24-TQFN (3x4)
Series	-	Packaging	Tape & Reel (TR)
Package / Case	24-WFQFN Exposed Pad	Operating Temperature	-40°C ~ 85°C (TA)
Number of Outputs	8	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Internal Switch(s)	Yes	Frequency	675kHz, 1.3MHz
Dimming	PWM	Detailed Description	LED Driver IC 8 Output DC DC Regulator Step-Up (Boost) PWM Dimming 45mA 24-TQFN (3x4)
Current - Output / Channel	45mA	Applications	Backlight
