S12MD3

Sharp Microelectronics

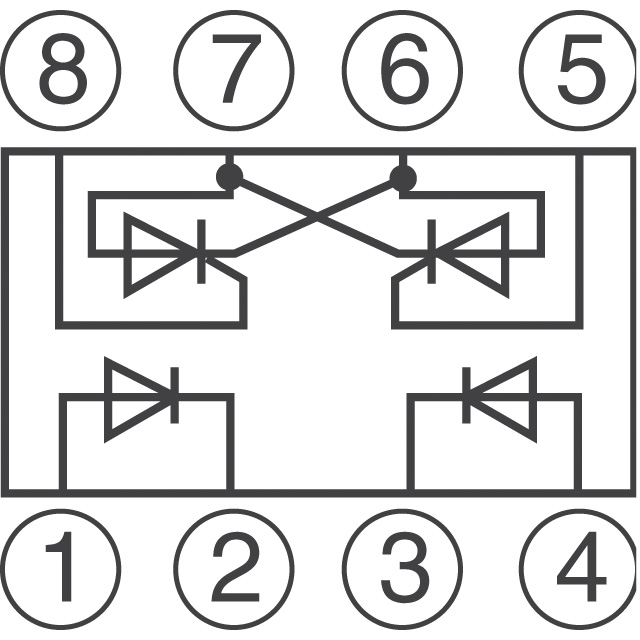

Image may be representation. See specifications for product details.

Product Overview

Part Number:	S12MD3
Manufacturer/Brand:	Sharp Microelectronics
Product description	OPTOISOLATOR 1.5KV SCR 8DIP
Datasheets:	S12MD3.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	5674 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 5674 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of S12MD3

Part Number	S12MD3	Manufacturer	Sharp Microelectronics
Description	OPTOISOLATOR 1.5KV SCR 8DIP	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	5674 pcs	Data sheet	S12MD3.pdf
Zero Crossing Circuit	No	Voltage - Off State	400V
Voltage - Isolation	1500Vrms	Voltage - Forward (Vf) (Typ)	1.2V
Turn On Time	10µs	Supplier Device Package	8-DIP
Static dV/dt (Min)	3V/µs	Series	-
Packaging	Tube	Package / Case	8-DIP (0.300", 7.62mm)
Output Type	SCR	Other Names	425-1238-5
Operating Temperature	-30°C ~ 100°C	Number of Channels	2
Mounting Type	Through Hole	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Detailed Description	Optoisolator SCR Output 1500Vrms 2 Channel 8-DIP	Current - On State (It (RMS)) (Max)	200mA
Current - LED Trigger (Ift) (Max)	15mA	Current - Hold (Ih)	1mA
Current - DC Forward (If) (Max)	50mA	Approvals	UR
