PQ200WNA1ZPH

Sharp Microelectronics

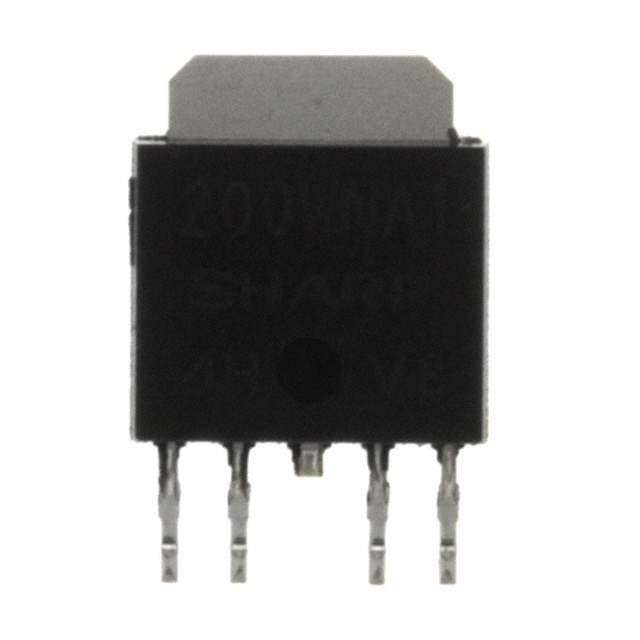

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PQ200WNA1ZPH
Manufacturer/Brand:	Sharp Microelectronics
Product description	IC REG LINEAR POS ADJ 1A SC63
Datasheets:	PQ200WNA1ZPH.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2841 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 2841 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PQ200WNA1ZPH

Part Number	PQ200WNA1ZPH	Manufacturer	Sharp Microelectronics
Description	IC REG LINEAR POS ADJ 1A SC63	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2841 pcs	Data sheet	PQ200WNA1ZPH.pdf
Voltage Dropout (Max)	-	Voltage - Output (Min/Fixed)	3V
Voltage - Output (Max)	20V	Voltage - Input (Max)	24V
Supplier Device Package	SC-63	Series	-
Protection Features	Over Current, Over Temperature	Packaging	Cut Tape (CT)
Package / Case	TO-252-5, DPak (4 Leads + Tab), TO-252AD	PSRR	60dB (120Hz)
Output Type	Adjustable	Output Configuration	Positive
Other Names	425-2678-1	Operating Temperature	-40°C ~ 85°C
Number of Regulators	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	2 (1 Year)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	Linear Voltage Regulator IC Positive Adjustable 1 Output 3 V ~ 20 V 1A SC-63	Current - Quiescent (Iq)	8mA
Current - Output	1A	Control Features	Enable
