PQ1CZ41H2ZPH

Sharp Microelectronics

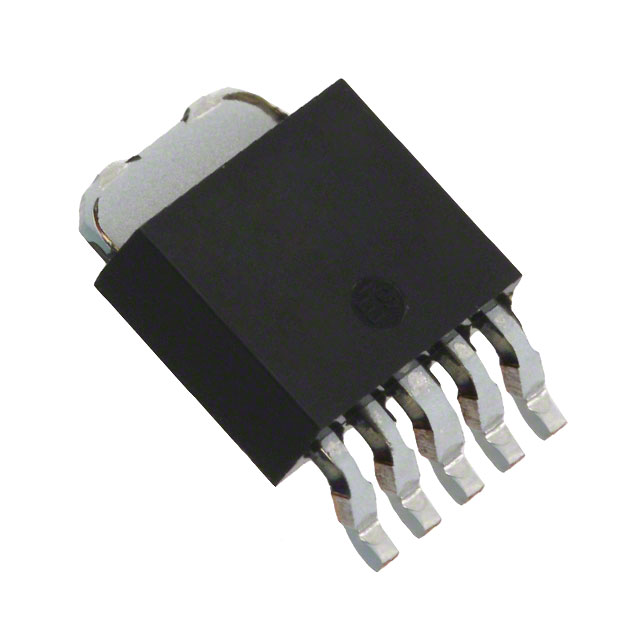

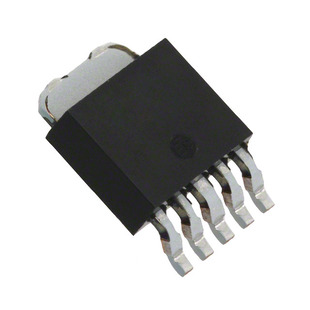

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PQ1CZ41H2ZPH
Manufacturer/Brand:	Sharp Microelectronics
Product description	IC REG BUCK INV ADJ 1.5A SC63
Datasheets:	PQ1CZ41H2ZPH.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4965 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4965 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PQ1CZ41H2ZPH

Part Number	PQ1CZ41H2ZPH	Manufacturer	Sharp Microelectronics
Description	IC REG BUCK INV ADJ 1.5A SC63	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4965 pcs	Data sheet	PQ1CZ41H2ZPH.pdf
Voltage - Output (Min/Fixed)	±1.26V	Voltage - Output (Max)	35V, -30V
Voltage - Input (Min)	8V	Voltage - Input (Max)	35V
Topology	Buck	Synchronous Rectifier	No
Supplier Device Package	SC-63	Series	-
Packaging	Original-Reel®	Package / Case	TO-252-6, DPak (5 Leads + Tab)
Output Type	Adjustable	Output Configuration	Positive or Negative
Other Names	425-2642-6	Operating Temperature	-40°C ~ 85°C (TA)
Number of Outputs	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Function	Step-Down	Frequency - Switching	300kHz
Detailed Description	Buck Switching Regulator IC Positive or Negative Adjustable ±1.26V 1 Output 1.5A TO-252-6, DPak (5 Leads + Tab)	Current - Output	1.5A
