PC851X

Sharp Microelectronics

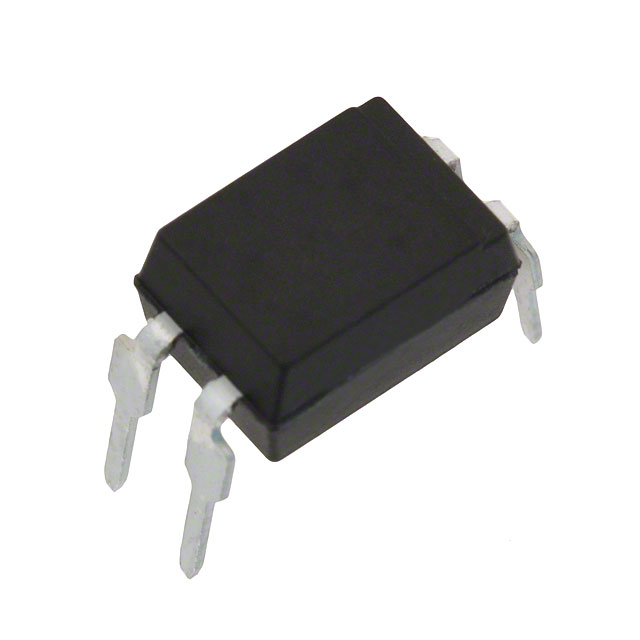

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PC851X
Manufacturer/Brand:	Sharp Microelectronics
Product description	OPTOISOLATOR 5KV TRANS 4DIP
Datasheets:	PC851X.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	5468 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 5468 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PC851X

Part Number	PC851X	Manufacturer	Sharp Microelectronics
Description	OPTOISOLATOR 5KV TRANS 4DIP	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	5468 pcs	Data sheet	PC851X.pdf
Voltage - Output (Max)	350V	Voltage - Isolation	5000Vrms
Voltage - Forward (Vf) (Typ)	1.2V	Vce Saturation (Max)	300mV
Turn On / Turn Off Time (Typ)	-	Supplier Device Package	4-DIP
Series	-	Rise / Fall Time (Typ)	4µs, 5µs
Packaging	Tube	Package / Case	4-DIP (0.300", 7.62mm)
Output Type	Transistor	Other Names	425-1503-5
Operating Temperature	-25°C ~ 100°C	Number of Channels	1
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Input Type	DC
Detailed Description	Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP	Current Transfer Ratio (Min)	-
Current Transfer Ratio (Max)	-	Current - Output / Channel	50mA
Current - DC Forward (If) (Max)	50mA
