PC451J00000F

Sharp Microelectronics

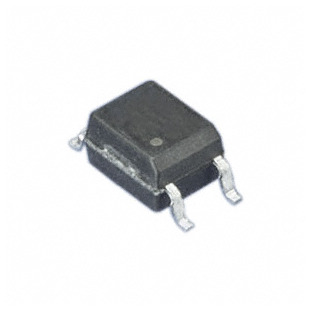

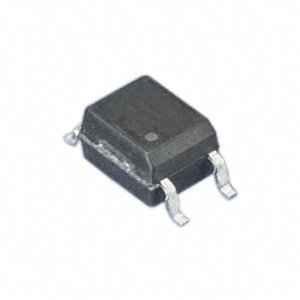

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PC451J00000F
Manufacturer/Brand:	Sharp Microelectronics
Product description	OPTOISOLATOR 3.75KV TRANS 4SMD
Datasheets:	PC451J00000F.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	48309 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 48309 pcs

Reference Price (In US Dollars)

1 pcs: $0.654

10 pcs: $0.579

25 pcs: $0.43

100 pcs: $0.374

250 pcs: $0.336

500 pcs: $0.299

1000 pcs: $0.257

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.654

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PC451J00000F

Part Number	PC451J00000F	Manufacturer	Sharp Microelectronics
Description	OPTOISOLATOR 3.75KV TRANS 4SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	48309 pcs	Data sheet	PC451J00000F.pdf
Voltage - Output (Max)	350V	Voltage - Isolation	3750Vrms
Voltage - Forward (Vf) (Typ)	1.2V	Vce Saturation (Max)	300mV
Turn On / Turn Off Time (Typ)	-	Supplier Device Package	4-Mini-Flat
Series	-	Rise / Fall Time (Typ)	4µs, 5µs
Packaging	Cut Tape (CT)	Package / Case	4-SMD
Output Type	Transistor	Other Names	425-2144-1
Operating Temperature	-25°C ~ 100°C	Number of Channels	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	DC
Detailed Description	Optoisolator Transistor Output 3750Vrms 1 Channel 4-Mini-Flat	Current Transfer Ratio (Min)	40% @ 5mA
Current Transfer Ratio (Max)	-	Current - Output / Channel	50mA
Current - DC Forward (If) (Max)	50mA
