Schurter
| Part Number | PFRA.500 | Manufacturer | Schurter |
|---|---|---|---|

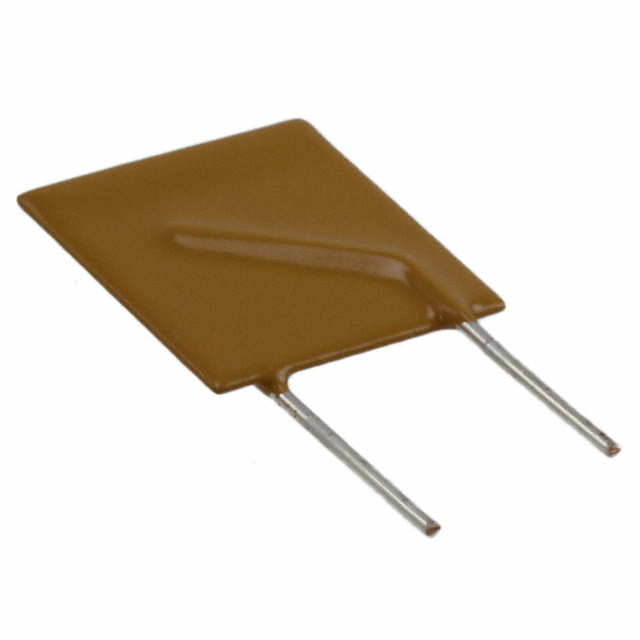

| Description | PTC RESET FUSE 30V 5A RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 111477 pcs | Data sheet | PFRA.500.pdf |
| Voltage - Max | 30V | Type | Polymeric |
| Time to Trip | 14.5s | Thickness (Max) | - |
| Size / Dimension | 0.685" L x 0.118" W (17.40mm x 3.00mm) | Series | PFRA |
| Resistance - Post Trip (R1) (Max) | 50 mOhms | Resistance - Initial (Ri) (Min) | 10 mOhms |
| Ratings | - | Packaging | Bulk |
| Package / Case | Radial, Disc | Other Names | 486-2299 PFRA.500-ND PFRA500 |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Spacing | 0.402" (10.20mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.980" (24.90mm) | Detailed Description | Polymeric PTC Resettable Fuse 30V 5A Ih Through Hole Radial, Disc |
| Current - Trip (It) | 10A | Current - Max | 40A |
| Current - Hold (Ih) (Max) | 5A | Approvals | cURus, TUV |
