DLH-22-0004

Schurter

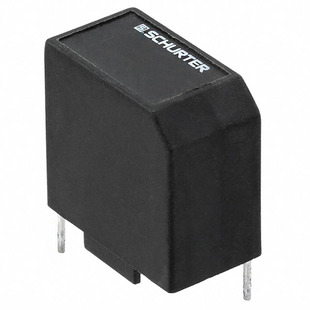

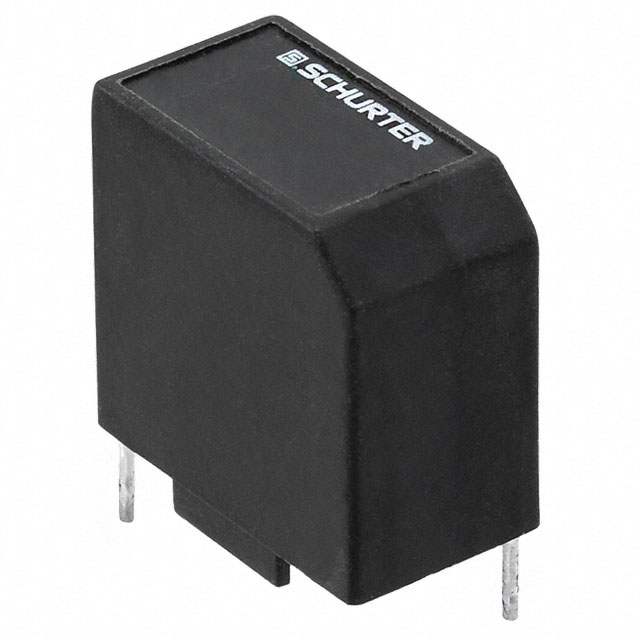

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DLH-22-0004
Manufacturer/Brand:	Schurter
Product description	COMMON MODE CHOKE 1.5A 2LN TH
Datasheets:	DLH-22-0004.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	27481 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 27481 pcs

Reference Price (In US Dollars)

1 pcs: $1.167

50 pcs: $0.987

100 pcs: $0.843

500 pcs: $0.736

1000 pcs: $0.664

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.167

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DLH-22-0004

Part Number	DLH-22-0004	Manufacturer	Schurter
Description	COMMON MODE CHOKE 1.5A 2LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	27481 pcs	Data sheet	DLH-22-0004.pdf
Type	-	Tolerance	±15%
Supplier Device Package	-	Size / Dimension	0.906" L x 0.512" W (23.00mm x 13.00mm)
Shielding	Shielded	Series	DLH
Ratings	-	Q @ Freq	-
Packaging	Bulk	Package / Case	Radial
Other Names	486-3105 DLH-22-0004-ND DLH1-22-1.5-500/A	Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole	Material - Core	-
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance	500nH	Height - Seated (Max)	0.945" (24.00mm)
Features	-	Detailed Description	500nH Shielded Inductor 1.5A 280 mOhm Radial
DC Resistance (DCR)	280 mOhm	Current Rating	1.5A
