RT8532-6-6M0

Schaffner EMC, Inc.

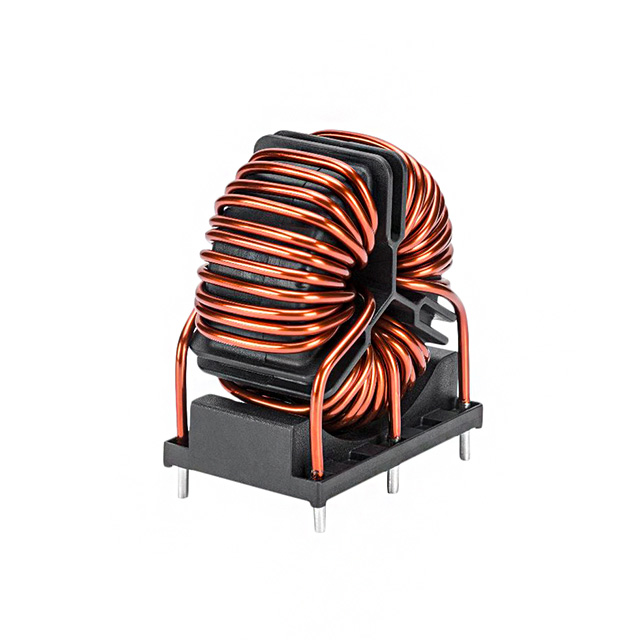

Image may be representation. See specifications for product details.

Product Overview

Part Number:	RT8532-6-6M0
Manufacturer/Brand:	Schaffner EMC, Inc.
Product description	COMMON MODE CHOKE 6MH 6A 3LN TH
Datasheets:	RT8532-6-6M0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	11145 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 11145 pcs

Reference Price (In US Dollars)

1 pcs: $3.226

98 pcs: $2.194

196 pcs: $2.065

588 pcs: $1.936

1078 pcs: $1.907

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.226

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of RT8532-6-6M0

Part Number	RT8532-6-6M0	Manufacturer	Schaffner EMC, Inc.
Description	COMMON MODE CHOKE 6MH 6A 3LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11145 pcs	Data sheet	RT8532-6-6M0.pdf
Voltage Rating - DC	-	Voltage Rating - AC	600V
Size / Dimension	1.732" L x 1.260" W (44.00mm x 32.00mm)	Series	RT
Ratings	-	Package / Case	Vertical, 6 PC Pin
Other Names	816973 817-2285	Operating Temperature	-40°C ~ 100°C
Number of Lines	3	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance @ Frequency	6mH @ 100kHz
Height (Max)	1.850" (47.00mm)	Filter Type	Power Line
Features	-	Detailed Description	6mH @ 100kHz 3 Line Common Mode Choke Through Hole 6A DCR 27 mOhm (Typ)
DC Resistance (DCR) (Max)	27 mOhm (Typ)	Current Rating (Max)	6A
Approvals	-
