RT8122-8-8M0

Schaffner EMC, Inc.

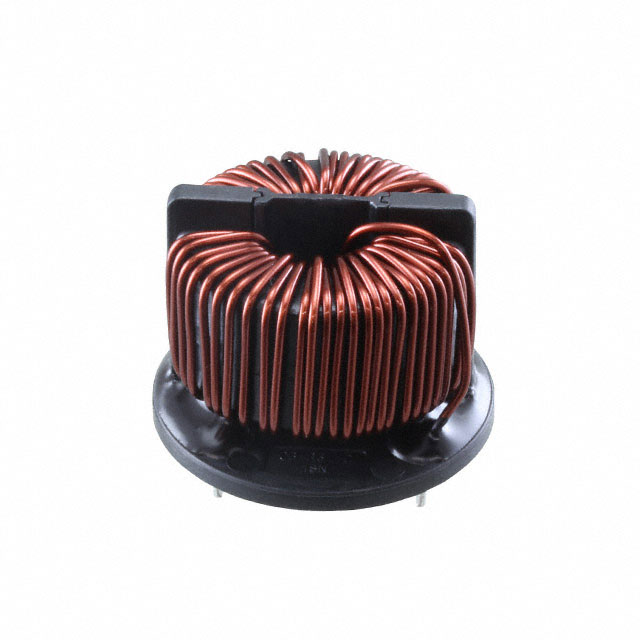

Image may be representation. See specifications for product details.

Product Overview

Part Number:	RT8122-8-8M0
Manufacturer/Brand:	Schaffner EMC, Inc.
Product description	COMMON MODE CHOKE 8MH 8A 2LN TH
Datasheets:	RT8122-8-8M0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12923 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 12923 pcs

Reference Price (In US Dollars)

1 pcs: $2.641

70 pcs: $1.796

140 pcs: $1.691

560 pcs: $1.585

1050 pcs: $1.561

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.641

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of RT8122-8-8M0

Part Number	RT8122-8-8M0	Manufacturer	Schaffner EMC, Inc.
Description	COMMON MODE CHOKE 8MH 8A 2LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12923 pcs	Data sheet	RT8122-8-8M0.pdf
Voltage Rating - DC	425V	Voltage Rating - AC	300V
Size / Dimension	1.772" Dia (45.00mm)	Series	RT
Ratings	-	Package / Case	Horizontal, 4 PC Pin
Other Names	816956 817-2268	Operating Temperature	-40°C ~ 100°C
Number of Lines	2	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance @ Frequency	8mH @ 100kHz
Height (Max)	1.339" (34.00mm)	Filter Type	Power Line
Features	-	Detailed Description	8mH @ 100kHz 2 Line Common Mode Choke Through Hole 8A DCR 21 mOhm (Typ)
DC Resistance (DCR) (Max)	21 mOhm (Typ)	Current Rating (Max)	8A
Approvals	-
