Schaffner EMC, Inc.
| Part Number | RD6127-16-3M0 | Manufacturer | Schaffner EMC, Inc. |
|---|---|---|---|

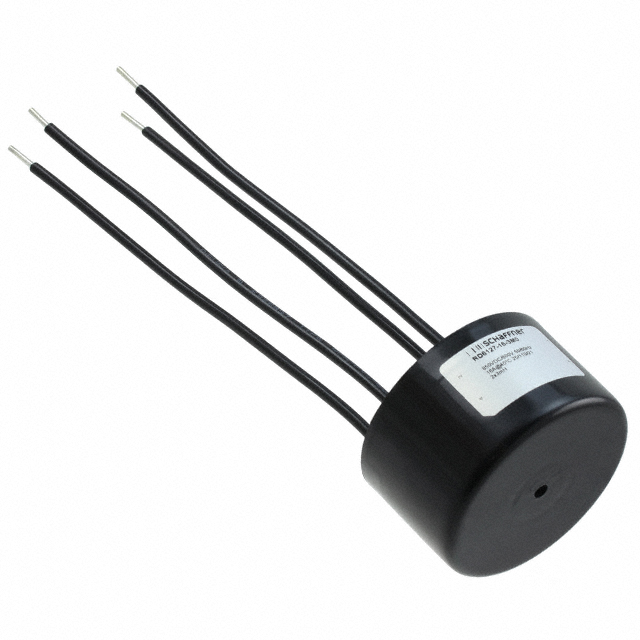

| Description | COMMON MODE CHOKE 3MH 16A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6247 pcs | Data sheet | RD6127-16-3M0.pdf |
| Voltage Rating - DC | 850V | Voltage Rating - AC | 600V |
| Size / Dimension | 2.362" L x 2.362" W (60.00mm x 60.00mm) | Series | RD |
| Ratings | - | Packaging | Tray |
| Package / Case | Horizontal, 4 PC Pin | Other Names | 292-135 800655 817-2020 RD6127-16-3M0-ND |
| Operating Temperature | -25°C ~ 110°C | Number of Lines | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance @ Frequency | 3mH @ 1kHz | Height (Max) | 1.398" (35.50mm) |
| Filter Type | Power Line | Features | - |
| Detailed Description | 3mH @ 1kHz 2 Line Common Mode Choke Through Hole 16A (Typ) DCR 10.9 mOhm (Typ) | DC Resistance (DCR) (Max) | 10.9 mOhm (Typ) |
| Current Rating (Max) | 16A (Typ) | Approvals | - |
