Schaffner EMC, Inc.

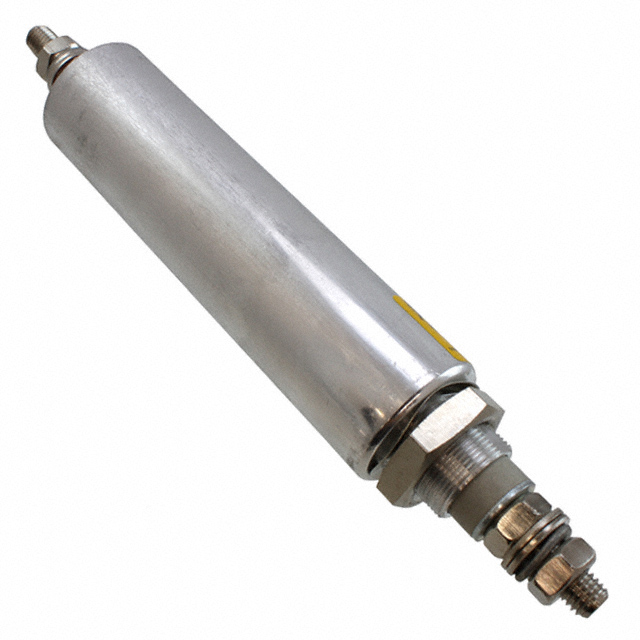

| Part Number | FN7661-100-M8 | Manufacturer | Schaffner EMC, Inc. |
|---|---|---|---|
| Description | FILTER LC(PI) 186NH/1UH BOLT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 632 pcs | Data sheet | FN7661-100-M8.pdf |
| Voltage - Rated | 130V | Values | L = 186nH, C = 1µF |
| Type | Low Pass | Technology | LC (Pi) |
| Size / Dimension | 1.260" Dia x 5.354" L (32.00mm x 136.00mm | Series | FN 766X |
| Resistance - Channel (Ohms) | 0.00028 | Packaging | Tray |
| Package / Case | Axial - Threaded Terminals | Other Names | 297-711 801445 817-1762 FN7661-100-M8-ND FN7661100M8 |
| Operating Temperature | -40°C ~ 100°C | Number of Channels | 1 |
| Mounting Type | Bolt Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height | - | Filter Order | 3rd |
| ESD Protection | No | Detailed Description | LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel L = 186nH, C = 1µF 100A Axial - Threaded Terminals |
| Current | 100A | Center / Cutoff Frequency | - |
| Attenuation Value | - | Applications | Data Lines for Mobile Devices |
