FN7563-100-M8

Schaffner EMC, Inc.

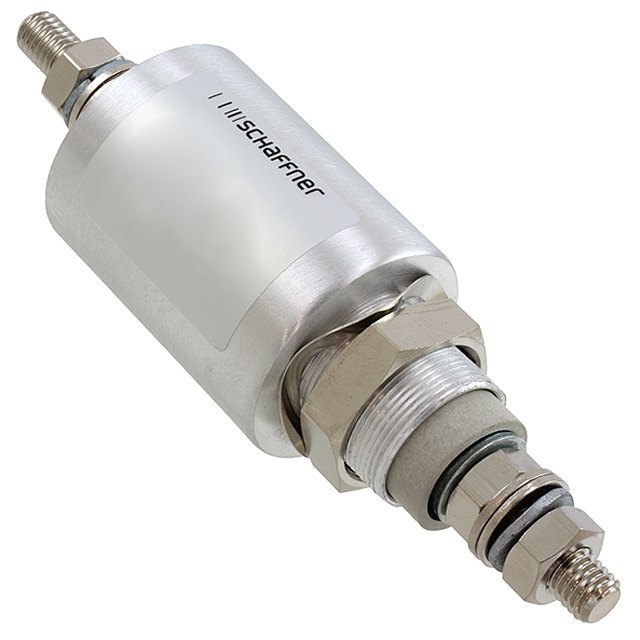

Image may be representation. See specifications for product details.

Product Overview

Part Number:	FN7563-100-M8
Manufacturer/Brand:	Schaffner EMC, Inc.
Product description	CAP FEEDTHRU 1UF 20% 650V AXIAL
Datasheets:	FN7563-100-M8.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	827 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 827 pcs

Reference Price (In US Dollars)

1 pcs: $37.948

10 pcs: $35.986

100 pcs: $33.369

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$37.948

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of FN7563-100-M8

Part Number	FN7563-100-M8	Manufacturer	Schaffner EMC, Inc.
Description	CAP FEEDTHRU 1UF 20% 650V AXIAL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	827 pcs	Data sheet	FN7563-100-M8.pdf
Voltage - Rated	650V	Tolerance	±20%
Thread Size	M24x2	Temperature Coefficient	-
Size / Dimension	1.496" Dia x 5.236" L (38.00mm x 133.00mm)	Series	FN 756X
Ratings	Y4	Packaging	Tray
Package / Case	Axial - Threaded Terminals	Other Names	297-553 801415 817-1742 FN7563-100-M8-ND FN7563100M8
Operating Temperature	-40°C ~ 100°C	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Loss	-	Height (Max)	-
Detailed Description	1µF Feed Through Capacitor 650V 100A 0.25 mOhm (Typ) Axial - Threaded Terminals	DC Resistance (DCR) (Max)	0.25 mOhm (Typ)
Current	100A	Capacitance	1µF
