EV28-2.0-02-11M

Schaffner EMC, Inc.

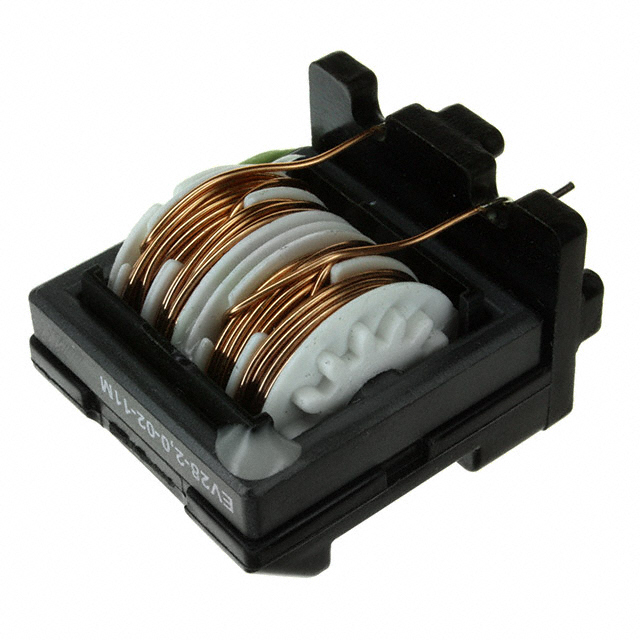

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EV28-2.0-02-11M
Manufacturer/Brand:	Schaffner EMC, Inc.
Product description	COMMON MODE CHOKE 11MH 2A 2LN TH
Datasheets:	EV28-2.0-02-11M.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	34229 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 34229 pcs

Reference Price (In US Dollars)

1 pcs: $1.113

10 pcs: $1.019

100 pcs: $0.667

500 pcs: $0.593

1000 pcs: $0.556

2500 pcs: $0.548

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.113

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EV28-2.0-02-11M

Part Number	EV28-2.0-02-11M	Manufacturer	Schaffner EMC, Inc.
Description	COMMON MODE CHOKE 11MH 2A 2LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	34229 pcs	Data sheet	EV28-2.0-02-11M.pdf
Voltage Rating - DC	-	Voltage Rating - AC	250V
Size / Dimension	1.150" L x 0.827" W (29.20mm x 21.00mm)	Series	EV
Ratings	-	Packaging	Tube
Package / Case	Vertical, 4 PC Pin	Other Names	295-510 801063 817-1048 EV28-2,0-02-11M EV28200211M
Operating Temperature	-25°C ~ 100°C	Number of Lines	2
Mounting Type	Through Hole	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance @ Frequency	11mH @ 400Hz
Height (Max)	1.406" (35.70mm)	Filter Type	Power Line
Features	-	Detailed Description	11mH @ 400Hz 2 Line Common Mode Choke Through Hole 2A DCR 162 mOhm (Typ)
DC Resistance (DCR) (Max)	162 mOhm (Typ)	Current Rating (Max)	2A
Approvals	-
