EV20-0.8-02-5M6

Schaffner EMC, Inc.

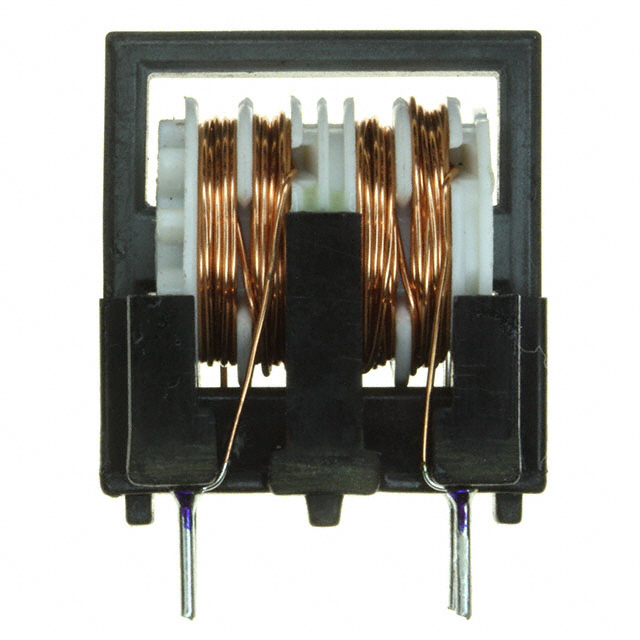

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EV20-0.8-02-5M6
Manufacturer/Brand:	Schaffner EMC, Inc.
Product description	CMC 5.6MH 800MA 2LN TH
Datasheets:	EV20-0.8-02-5M6.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	51047 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 51047 pcs

Reference Price (In US Dollars)

1 pcs: $0.73

10 pcs: $0.673

100 pcs: $0.471

500 pcs: $0.381

1000 pcs: $0.348

2500 pcs: $0.336

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.73

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EV20-0.8-02-5M6

Part Number	EV20-0.8-02-5M6	Manufacturer	Schaffner EMC, Inc.
Description	CMC 5.6MH 800MA 2LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	51047 pcs	Data sheet	EV20-0.8-02-5M6.pdf
Voltage Rating - DC	-	Voltage Rating - AC	250V
Size / Dimension	0.827" L x 0.630" W (21.00mm x 16.00mm)	Series	EV
Ratings	-	Packaging	Tube
Package / Case	Vertical, 4 PC Pin	Other Names	295-496 801049 817-1032 EV20-0,8-02-5M6 EV2008025M6
Operating Temperature	-25°C ~ 100°C	Number of Lines	2
Mounting Type	Through Hole	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance @ Frequency	5.6mH @ 400Hz
Height (Max)	1.024" (26.00mm)	Filter Type	Power Line
Features	-	Detailed Description	5.6mH @ 400Hz 2 Line Common Mode Choke Through Hole 800mA DCR 245 mOhm (Typ)
DC Resistance (DCR) (Max)	245 mOhm (Typ)	Current Rating (Max)	800mA
Approvals	-
