EH28-1.5-02-27M-X

Schaffner EMC, Inc.

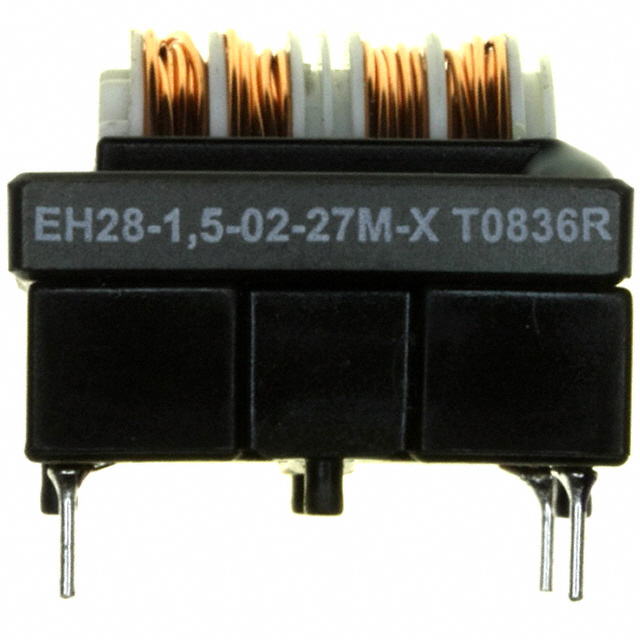

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EH28-1.5-02-27M-X
Manufacturer/Brand:	Schaffner EMC, Inc.
Product description	CMC 27MH 1.5A 2LN TH
Datasheets:	EH28-1.5-02-27M-X.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	31631 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 31631 pcs

Reference Price (In US Dollars)

1 pcs: $1.084

10 pcs: $0.992

100 pcs: $0.65

500 pcs: $0.577

1000 pcs: $0.541

2500 pcs: $0.533

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.084

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EH28-1.5-02-27M-X

Part Number	EH28-1.5-02-27M-X	Manufacturer	Schaffner EMC, Inc.
Description	CMC 27MH 1.5A 2LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	31631 pcs	Data sheet	EH28-1.5-02-27M-X.pdf
Voltage Rating - DC	-	Voltage Rating - AC	250V
Size / Dimension	1.102" L x 1.102" W (28.00mm x 28.00mm)	Series	EH
Ratings	-	Packaging	Tube
Package / Case	Horizontal, 4 PC Pin	Other Names	298-203 803736 817-1017 EH28-1,5-02-27M-X EH28150227MX
Operating Temperature	-25°C ~ 100°C	Number of Lines	2
Mounting Type	Through Hole	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance @ Frequency	27mH @ 400Hz
Height (Max)	0.941" (23.90mm)	Filter Type	Power Line
Features	-	Detailed Description	27mH @ 400Hz 2 Line Common Mode Choke Through Hole 1.5A DCR 282 mOhm
DC Resistance (DCR) (Max)	282 mOhm	Current Rating (Max)	1.5A
Approvals	-
