EH24-0.5-02-44M

Schaffner EMC, Inc.

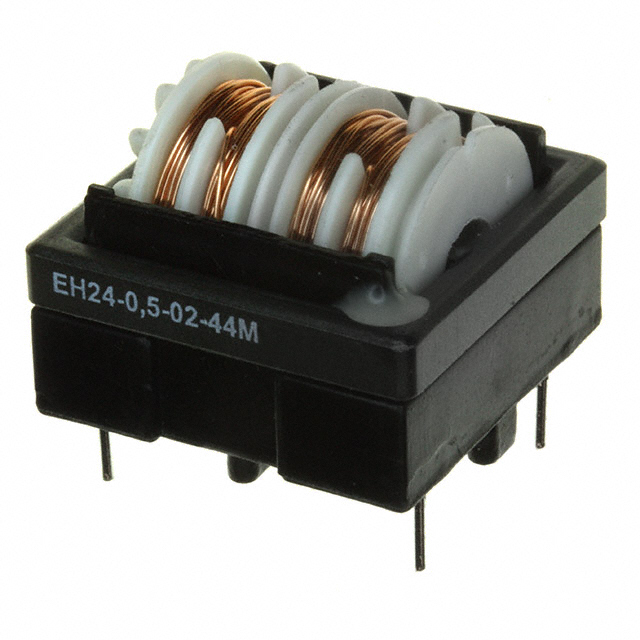

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EH24-0.5-02-44M
Manufacturer/Brand:	Schaffner EMC, Inc.
Product description	CMC 44MH 500MA 2LN TH
Datasheets:	EH24-0.5-02-44M.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	38709 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 38709 pcs

Reference Price (In US Dollars)

1 pcs: $0.856

10 pcs: $0.79

100 pcs: $0.553

500 pcs: $0.448

1000 pcs: $0.408

2500 pcs: $0.395

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.856

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EH24-0.5-02-44M

Part Number	EH24-0.5-02-44M	Manufacturer	Schaffner EMC, Inc.
Description	CMC 44MH 500MA 2LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	38709 pcs	Data sheet	EH24-0.5-02-44M.pdf
Voltage Rating - DC	-	Voltage Rating - AC	250V
Size / Dimension	0.945" L x 0.945" W (24.00mm x 24.00mm)	Series	EH
Ratings	-	Packaging	Tube
Package / Case	Horizontal, 4 PC Pin	Other Names	295-526 801079 817-1007 EH24-0,5-02-44M
Operating Temperature	-25°C ~ 100°C	Number of Lines	2
Mounting Type	Through Hole	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance @ Frequency	44mH @ 400Hz
Height (Max)	0.827" (21.00mm)	Filter Type	Power Line
Features	-	Detailed Description	44mH @ 400Hz 2 Line Common Mode Choke Through Hole 500mA DCR 1.25 Ohm (Typ)
DC Resistance (DCR) (Max)	1.25 Ohm (Typ)	Current Rating (Max)	500mA
Approvals	-
