EH20-0.8-02-5M6

Schaffner EMC, Inc.

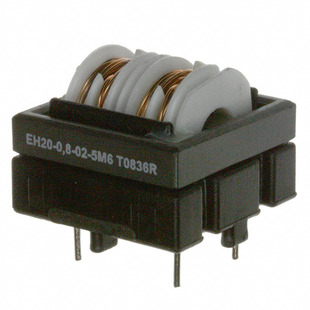

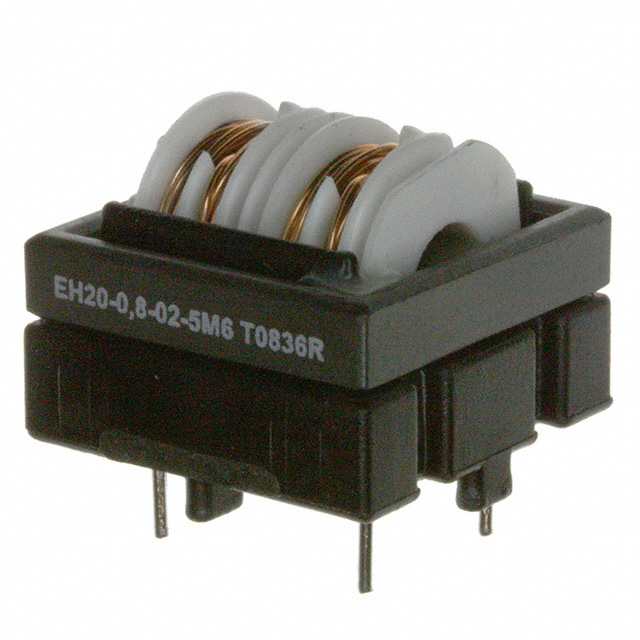

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EH20-0.8-02-5M6
Manufacturer/Brand:	Schaffner EMC, Inc.
Product description	CMC 5.6MH 800MA 2LN TH
Datasheets:	EH20-0.8-02-5M6.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	43399 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 43399 pcs

Reference Price (In US Dollars)

1 pcs: $0.697

10 pcs: $0.644

100 pcs: $0.451

500 pcs: $0.365

1000 pcs: $0.333

2500 pcs: $0.322

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.697

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EH20-0.8-02-5M6

Part Number	EH20-0.8-02-5M6	Manufacturer	Schaffner EMC, Inc.
Description	CMC 5.6MH 800MA 2LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	43399 pcs	Data sheet	EH20-0.8-02-5M6.pdf
Voltage Rating - DC	-	Voltage Rating - AC	250V
Size / Dimension	0.827" L x 0.827" W (21.00mm x 21.00mm)	Series	EH
Ratings	-	Packaging	Tube
Package / Case	Horizontal, 4 PC Pin	Other Names	295-521 801074 817-1002 EH20-0,8-02-5M6 EH2008025M6
Operating Temperature	-25°C ~ 100°C	Number of Lines	2
Mounting Type	Through Hole	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance @ Frequency	5.6mH @ 400Hz
Height (Max)	0.740" (18.80mm)	Filter Type	Power Line
Features	-	Detailed Description	5.6mH @ 400Hz 2 Line Common Mode Choke Through Hole 800mA DCR 245 mOhm (Typ)
DC Resistance (DCR) (Max)	245 mOhm (Typ)	Current Rating (Max)	800mA
Approvals	-
