Samtec Inc.

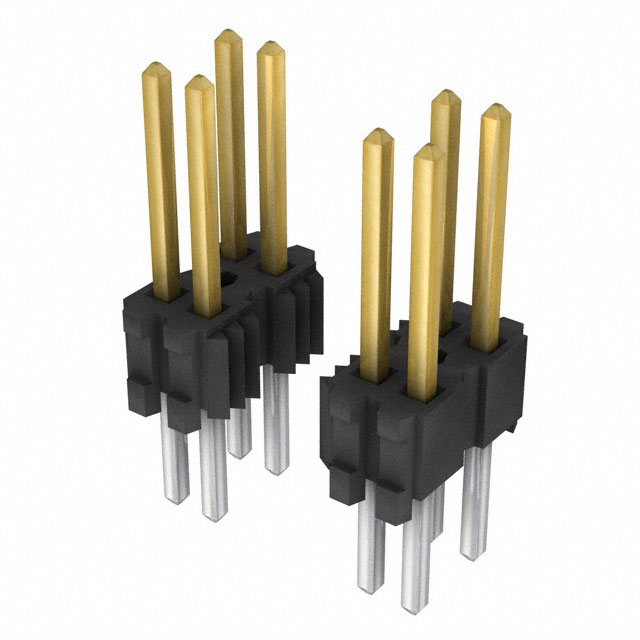

| Part Number | TMS-107-01-S-D | Manufacturer | Samtec Inc. |
|---|---|---|---|
| Description | CONN HEADER 14POS .050" T/H GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 52467 pcs | Data sheet | 1.TMS-107-01-S-D.pdf2.TMS-107-01-S-D.pdf3.TMS-107-01-S-D.pdf |
| Voltage - DC Spark Over (Nom) | Phosphor Bronze | Type Attributes | - |
| Termination | Solder | Style | Board to Board |
| Stacking Direction | Male Pin | Shrouding | 0.050" (1.27mm) |
| Shield Termination | Square | Series | TMS |
| Row Spacing - Mating | Unshrouded | RoHS Status | Tube |
| Ripple Current - Low Frequency | - | Pitch - Connector | - |
| Overall Contact Length | 0.120" (3.05mm) | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 14 |
| Number of Contacts | - | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | All | Manufacturer Standard Lead Time | 3 Weeks |
| Manufacturer Part Number | TMS-107-01-S-D | Length - Post (Mating) | - |
| Insulation Material | Tin | Insulation Height | 0.450" (11.43mm) |
| Features | - | Expanded Description | 14 Positions Header Connector 0.050" (1.27mm) Through Hole Gold |
| Description | CONN HEADER 14POS .050" T/H GOLD | Current Rating | 5A per Contact |
| Current - Max/Contact | - | Contact Length - Post | 0.230" (5.84mm) |
| Contact Length - Mating | 0.100" (2.54mm) | Contact Finish Thickness - Post | Liquid Crystal Polymer (LCP) |
| Contact Finish Thickness - Mating | Gold | Contact Finish - Post | 30µin (0.76µm) |
| Contact Finish - Mating | 0.100" (2.54mm) | Connector Type | Header |
| Actual Diameter | Black |
