STD03P

Sanken Electric Co., Ltd.

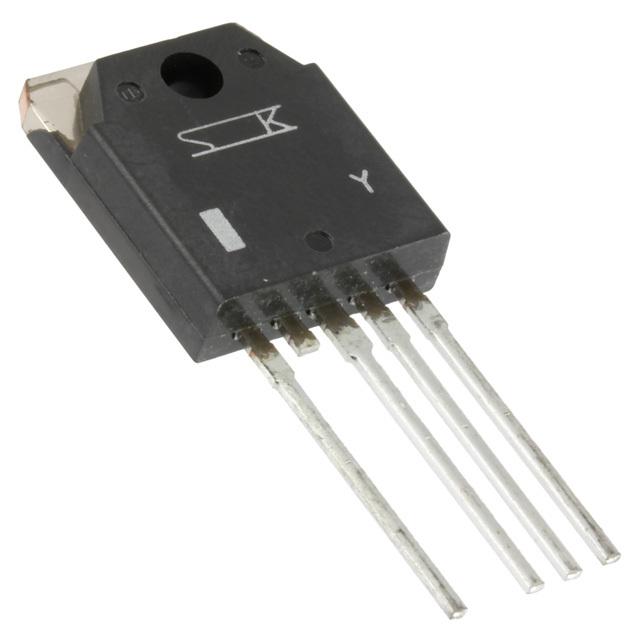

Image may be representation. See specifications for product details.

Product Overview

Part Number:	STD03P
Manufacturer/Brand:	Sanken Electric Co., Ltd.
Product description	TRANS PNP DARL 160V 15A TO-3P-5
Datasheets:	STD03P.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	16139 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 16139 pcs

Reference Price (In US Dollars)

1 pcs: $2.048

10 pcs: $1.83

25 pcs: $1.647

100 pcs: $1.501

250 pcs: $1.354

500 pcs: $1.215

1000 pcs: $1.025

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.048

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of STD03P

Part Number	STD03P	Manufacturer	Sanken Electric Co., Ltd.
Description	TRANS PNP DARL 160V 15A TO-3P-5	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16139 pcs	Data sheet	STD03P.pdf
Voltage - Collector Emitter Breakdown (Max)	160V	Vce Saturation (Max) @ Ib, Ic	2V @ 10mA, 10A
Transistor Type	PNP - Darlington	Supplier Device Package	TO-3P-5L
Series	-	Power - Max	160W
Packaging	Bulk	Package / Case	TO-3P-5
Other Names	STD03P DK	Operating Temperature	150°C (TJ)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Transition	-	Detailed Description	Bipolar (BJT) Transistor PNP - Darlington 160V 15A 160W Through Hole TO-3P-5L
DC Current Gain (hFE) (Min) @ Ic, Vce	5000 @ 10A, 4V	Current - Collector Cutoff (Max)	100µA (ICBO)
Current - Collector (Ic) (Max)	15A
