STD01N

Sanken Electric Co., Ltd.

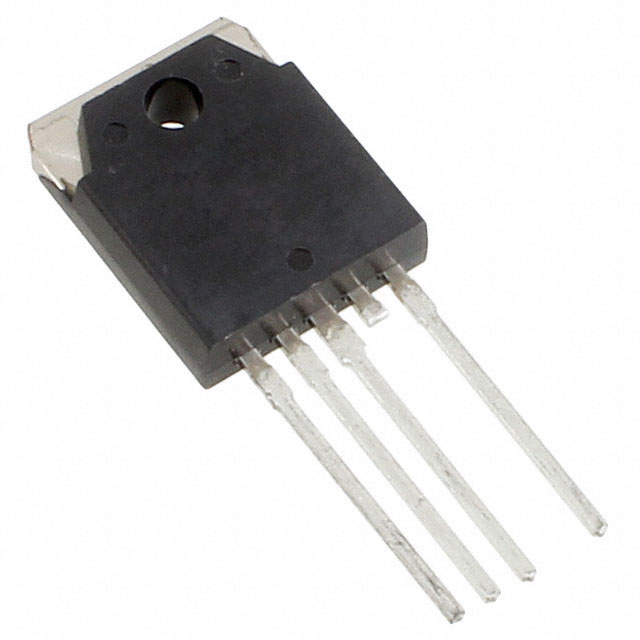

Image may be representation. See specifications for product details.

Product Overview

Part Number:	STD01N
Manufacturer/Brand:	Sanken Electric Co., Ltd.
Product description	TRANS NPN DARL 150V 10A TO-3P-5
Datasheets:	STD01N.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	22995 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 22995 pcs

Reference Price (In US Dollars)

1 pcs: $1.709

10 pcs: $1.527

25 pcs: $1.374

100 pcs: $1.252

250 pcs: $1.13

500 pcs: $1.014

1000 pcs: $0.855

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.709

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of STD01N

Part Number	STD01N	Manufacturer	Sanken Electric Co., Ltd.
Description	TRANS NPN DARL 150V 10A TO-3P-5	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	22995 pcs	Data sheet	STD01N.pdf
Voltage - Collector Emitter Breakdown (Max)	150V	Vce Saturation (Max) @ Ib, Ic	2V @ 6mA, 6A
Transistor Type	NPN - Darlington	Supplier Device Package	TO-3P-5L
Series	-	Power - Max	100W
Packaging	Bulk	Package / Case	TO-3P-5
Other Names	STD01N DK	Operating Temperature	150°C (TJ)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Transition	-	Detailed Description	Bipolar (BJT) Transistor NPN - Darlington 150V 10A 100W Through Hole TO-3P-5L
DC Current Gain (hFE) (Min) @ Ic, Vce	5000 @ 6A, 4V	Current - Collector Cutoff (Max)	100µA (ICBO)
Current - Collector (Ic) (Max)	10A
