STA302A

Sanken Electric Co., Ltd.

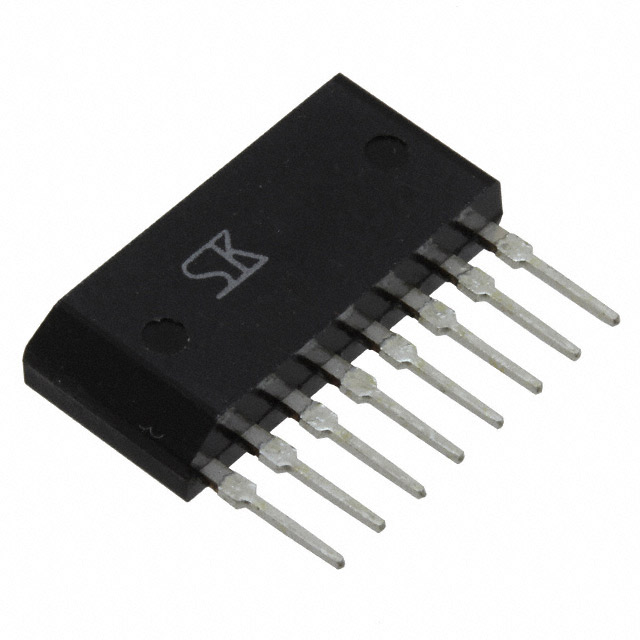

Image may be representation. See specifications for product details.

Product Overview

Part Number:	STA302A
Manufacturer/Brand:	Sanken Electric Co., Ltd.
Product description	TRANS 3PNP DARL 50V 4A 8SIP
Datasheets:	STA302A.pdf
RoHs Status	Lead free by exemption / RoHS Compliant
Stock Condition	35351 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 35351 pcs

Reference Price (In US Dollars)

1 pcs: $1.116

10 pcs: $1.009

25 pcs: $0.901

100 pcs: $0.811

250 pcs: $0.721

500 pcs: $0.631

1000 pcs: $0.522

2500 pcs: $0.486

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.116

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of STA302A

Part Number	STA302A	Manufacturer	Sanken Electric Co., Ltd.
Description	TRANS 3PNP DARL 50V 4A 8SIP	Lead Free Status / RoHS Status	Lead free by exemption / RoHS Compliant
Quantity Available	35351 pcs	Data sheet	STA302A.pdf
Voltage - Collector Emitter Breakdown (Max)	50V	Vce Saturation (Max) @ Ib, Ic	2V @ 10mA, 3A
Transistor Type	3 PNP Darlington (Emitter Coupled)	Supplier Device Package	8-SIP
Series	-	Power - Max	3W
Packaging	Bulk	Package / Case	8-SIP
Other Names	STA302A DK	Operating Temperature	150°C (TJ)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	36 Weeks	Lead Free Status / RoHS Status	Lead free by exemption / RoHS Compliant
Frequency - Transition	-	Detailed Description	Bipolar (BJT) Transistor Array 3 PNP Darlington (Emitter Coupled) 50V 4A 3W Through Hole 8-SIP
DC Current Gain (hFE) (Min) @ Ic, Vce	1000 @ 3A, 4V	Current - Collector Cutoff (Max)	100µA (ICBO)
Current - Collector (Ic) (Max)	4A
