SIM6827M

Sanken Electric Co., Ltd.

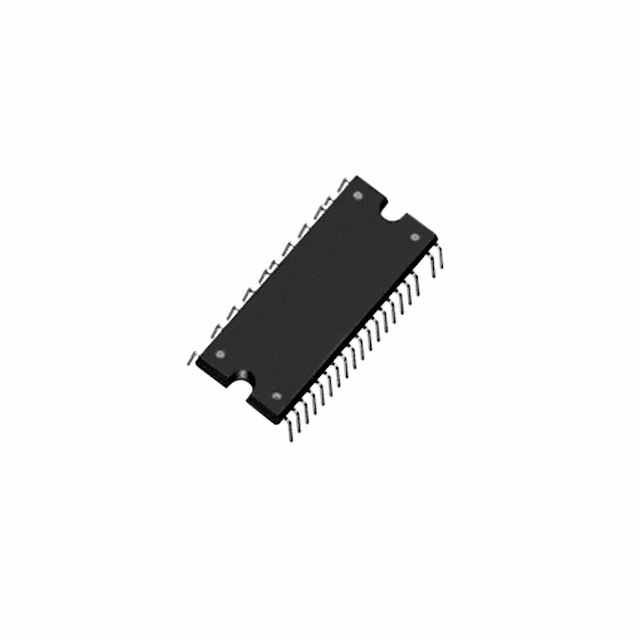

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SIM6827M
Manufacturer/Brand:	Sanken Electric Co., Ltd.
Product description	IC BRIDGE DRIVER PAR 40DIP
Datasheets:	1.SIM6827M.pdf 2.SIM6827M.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	8644 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 8644 pcs

Reference Price (In US Dollars)

1 pcs: $3.883

15 pcs: $3.495

30 pcs: $3.184

105 pcs: $2.874

255 pcs: $2.641

510 pcs: $2.408

1005 pcs: $2.097

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.883

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SIM6827M

Part Number	SIM6827M	Manufacturer	Sanken Electric Co., Ltd.
Description	IC BRIDGE DRIVER PAR 40DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8644 pcs	Data sheet	1.SIM6827M.pdf 2.SIM6827M.pdf
Voltage - Supply	13.5 V ~ 16.5 V	Voltage - Load	400V (Max)
Technology	IGBT	Supplier Device Package	40-DIP LF2971
Series	-	Rds On (Typ)	-
Packaging	Tube	Package / Case	40-DIP (0.657", 16.70mm), 29 Leads
Output Configuration	Half Bridge (3)	Other Names	SIM6827M DK
Operating Temperature	-20°C ~ 100°C (TA)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	36 Weeks
Load Type	Inductive	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Interface	Logic	Features	Bootstrap Circuit
Fault Protection	Current Limiting, Over Temperature, UVLO	Detailed Description	Half Bridge (3) Driver AC Motors IGBT 40-DIP LF2971
Current - Peak Output	7.5A	Current - Output / Channel	5A
Applications	AC Motors
