RA 13V1

Sanken Electric Co., Ltd.Sanken Electric Co., Ltd.

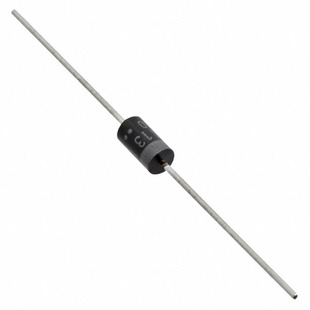

RA 13V1 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: RA 13V1
Manufacturer/Brand: Sanken Electric Co., Ltd.
Product description DIODE SCHOTTKY 30V 2A AXIAL
Datasheets: 1.RA 13V1.pdf2.RA 13V1.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 3975 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 3975 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of RA 13V1

Part Number RA 13V1 Manufacturer Sanken Electric Co., Ltd.
Description DIODE SCHOTTKY 30V 2A AXIAL Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 3975 pcs Data sheet 1.RA 13V1.pdf2.RA 13V1.pdf
Voltage - Forward (Vf) (Max) @ If 360mV @ 2A Voltage - DC Reverse (Vr) (Max) 30V
Supplier Device Package - Speed Fast Recovery = 200mA (Io)
Series - Packaging Tape & Box (TB)
Package / Case Axial Other Names RA 13V1 DK
RA 13V1-ND
RA 13V1TB
RA 13V1TB-ND
RA 13V1TR
RA 13V1TR-ND
RA13V1TB
Operating Temperature - Junction -40°C ~ 125°C Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Diode Type Schottky Detailed Description Diode Schottky 30V 2A Through Hole
Current - Reverse Leakage @ Vr 3mA @ 30V Current - Average Rectified (Io) 2A
Capacitance @ Vr, F -
