TSW-107-07-G-T

Samtec, Inc.

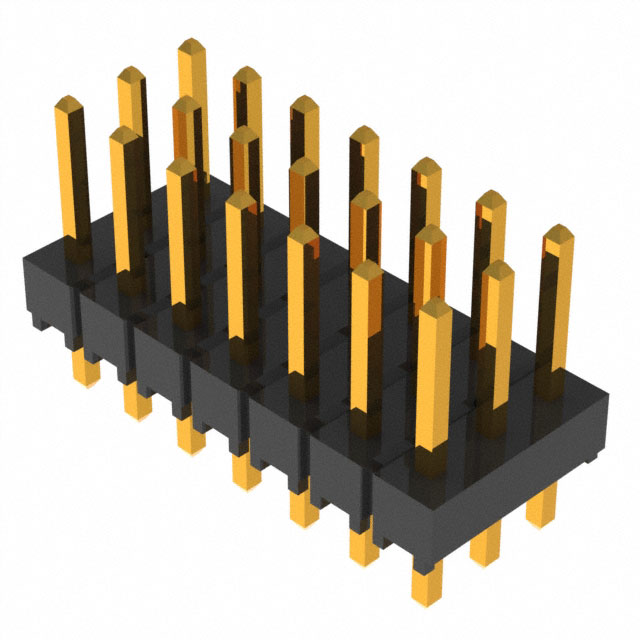

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TSW-107-07-G-T
Manufacturer/Brand:	Samtec, Inc.
Product description	.025" SQ. TERMINAL STRIPS
Datasheets:	1.TSW-107-07-G-T.pdf 2.TSW-107-07-G-T.pdf 3.TSW-107-07-G-T.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	45547 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 45547 pcs

Reference Price (In US Dollars)

1 pcs: $0.795

10 pcs: $0.72

100 pcs: $0.617

500 pcs: $0.514

1000 pcs: $0.441

5000 pcs: $0.391

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.795

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TSW-107-07-G-T

Part Number	TSW-107-07-G-T	Manufacturer	Samtec, Inc.
Description	.025" SQ. TERMINAL STRIPS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	45547 pcs	Data sheet	1.TSW-107-07-G-T.pdf 2.TSW-107-07-G-T.pdf 3.TSW-107-07-G-T.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	TSW	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	0.430" (10.92mm)	Other Names	SAM12327 TSW-107-07-G-T-ND
Operating Temperature	-55°C ~ 125°C	Number of Rows	3
Number of Positions Loaded	All	Number of Positions	21
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	3 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT)	Insulation Height	0.100" (2.54mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 21 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.100" (2.54mm)
Contact Length - Mating	0.230" (5.84mm)	Contact Finish Thickness - Post	3.00µin (0.076µm)
Contact Finish Thickness - Mating	10.0µin (0.25µm)	Contact Finish - Post	Gold
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
