TSW-105-08-G-D-RA

Samtec, Inc.

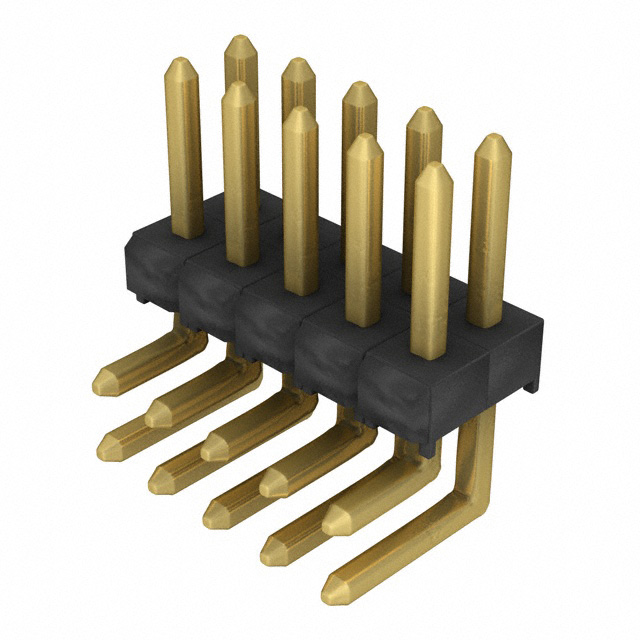

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TSW-105-08-G-D-RA
Manufacturer/Brand:	Samtec, Inc.
Product description	CONN HEADER 10POS .100 DL R/A AU
Datasheets:	1.TSW-105-08-G-D-RA.pdf 2.TSW-105-08-G-D-RA.pdf 3.TSW-105-08-G-D-RA.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	38660 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 38660 pcs

Reference Price (In US Dollars)

1 pcs: $0.874

10 pcs: $0.781

100 pcs: $0.643

500 pcs: $0.508

1000 pcs: $0.436

5000 pcs: $0.398

10000 pcs: $0.383

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.874

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TSW-105-08-G-D-RA

Part Number	TSW-105-08-G-D-RA	Manufacturer	Samtec, Inc.
Description	CONN HEADER 10POS .100 DL R/A AU	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	38660 pcs	Data sheet	1.TSW-105-08-G-D-RA.pdf 2.TSW-105-08-G-D-RA.pdf 3.TSW-105-08-G-D-RA.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	TSW	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	SAM1037-05
Operating Temperature	-55°C ~ 125°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	10
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polybutylene Terephthalate (PBT)
Insulation Height	0.219" (5.56mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Phosphor Bronze
Contact Length - Post	0.090" (2.29mm)	Contact Length - Mating	0.230" (5.84mm)
Contact Finish Thickness - Post	3.00µin (0.076µm)	Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Gold	Contact Finish - Mating	Gold
Connector Type	Header	Applications	-
