TSW-103-08-G-T-RA

Samtec, Inc.

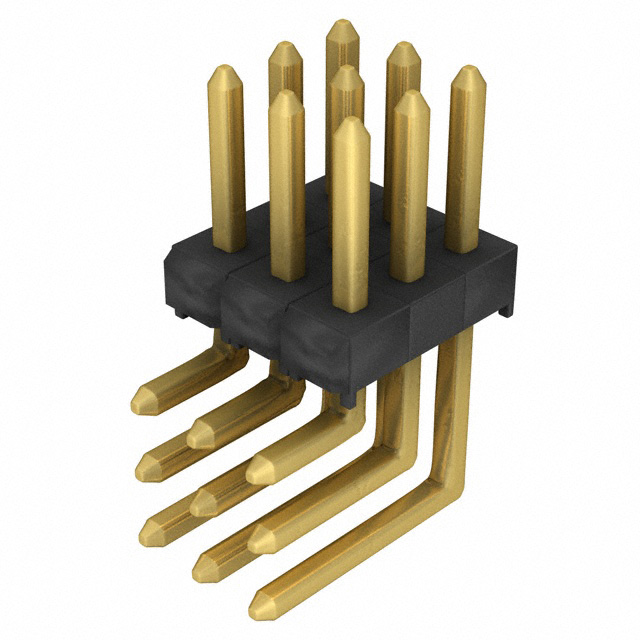

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TSW-103-08-G-T-RA
Manufacturer/Brand:	Samtec, Inc.
Product description	CONN HEADER 9POS .100" TPL R/A
Datasheets:	1.TSW-103-08-G-T-RA.pdf 2.TSW-103-08-G-T-RA.pdf 3.TSW-103-08-G-T-RA.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	93032 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 93032 pcs

Reference Price (In US Dollars)

1 pcs: $0.412

10 pcs: $0.362

100 pcs: $0.312

500 pcs: $0.256

1000 pcs: $0.227

5000 pcs: $0.199

10000 pcs: $0.189

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.412

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TSW-103-08-G-T-RA

Part Number	TSW-103-08-G-T-RA	Manufacturer	Samtec, Inc.
Description	CONN HEADER 9POS .100" TPL R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	93032 pcs	Data sheet	1.TSW-103-08-G-T-RA.pdf 2.TSW-103-08-G-T-RA.pdf 3.TSW-103-08-G-T-RA.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	TSW	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	SAM8888 TSW-103-08-G-T-RA-ND
Operating Temperature	-55°C ~ 125°C	Number of Rows	3
Number of Positions Loaded	All	Number of Positions	9
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	3 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT)	Insulation Height	0.320" (8.13mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole, Right Angle 9 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.090" (2.29mm)
Contact Length - Mating	0.230" (5.84mm)	Contact Finish Thickness - Post	3.00µin (0.076µm)
Contact Finish Thickness - Mating	10.0µin (0.25µm)	Contact Finish - Post	Gold
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
